Introduction

Match mounting, the practice of aligning the red dot on a tire with the valve hole on the wheel, is often touted as a method for optimizing tire and wheel assembly. However, the true value of this practice is debatable. There is minimal consistency in how wheels are marked for high or heavy spots, and tires also lack uniformity in identifying their high or heavy spots. The core issue is more about uniformity (out-of-round conditions) than balance.

As a result, many tire dealers often skip the match mounting procedure. While aligning the red dot with the valve hole does no harm, it may not provide significant benefits either. This article will delve into why match mounting may not be as critical as some believe, offering a clearer understanding of tire and wheel uniformity.

What is Match Mounting?

Match mounting is the process of aligning the high point of a tire with the low point of a wheel to create a "rounder" assembly. This practice addresses the inherent imperfections in both tires and wheels, as neither is perfectly round.

For wheels, the concept of runout refers to the variation in "out-of-roundness." This can be measured to identify both the high and low spots on the wheel. By aligning these spots with corresponding points on the tire, the overall assembly becomes more uniform.

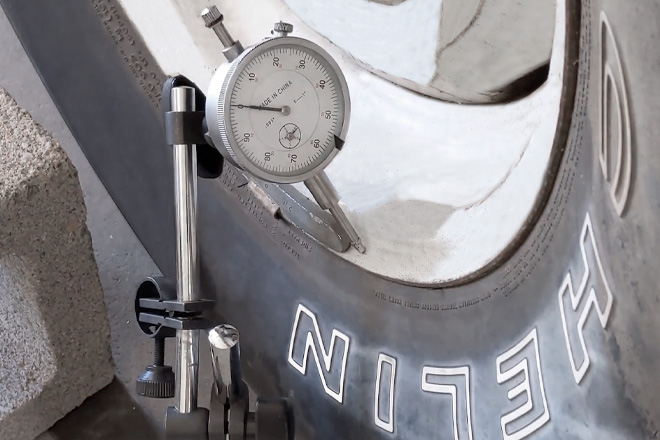

Using a Dial Indicator for Measuring Runout

Accurate runout measurement is important for ensuring vehicle safety and performance. Typically, this is done by measuring the bead seat areas on the inside of the wheel and averaging the results, which requires removing the tire from the wheel. However, a dial indicator can also be used for this purpose. While this method may not always be the most precise, it can still provide acceptable results when removing the tire is not feasible.

Tire Uniformity and Force Variation

Tires differ from wheels in that their uniformity is not just about being "round." Tire uniformity also involves variations in stiffness around the circumference, known as "force variation." This concept is crucial for understanding why match mounting can make a difference in tire performance.

Measuring Tire Uniformity

To measure tire uniformity, manufacturers use a Tire Uniformity Grader (TUG) machine. These machines are incredibly precise and expensive, costing around $600,000 as of 2005. It is common for tire manufacturers to have several dozen of these machines at the end of the assembly line to measure every tire produced. The TUG machine assesses both the out-of-round condition and the force variation of each tire, ensuring they meet strict quality standards.

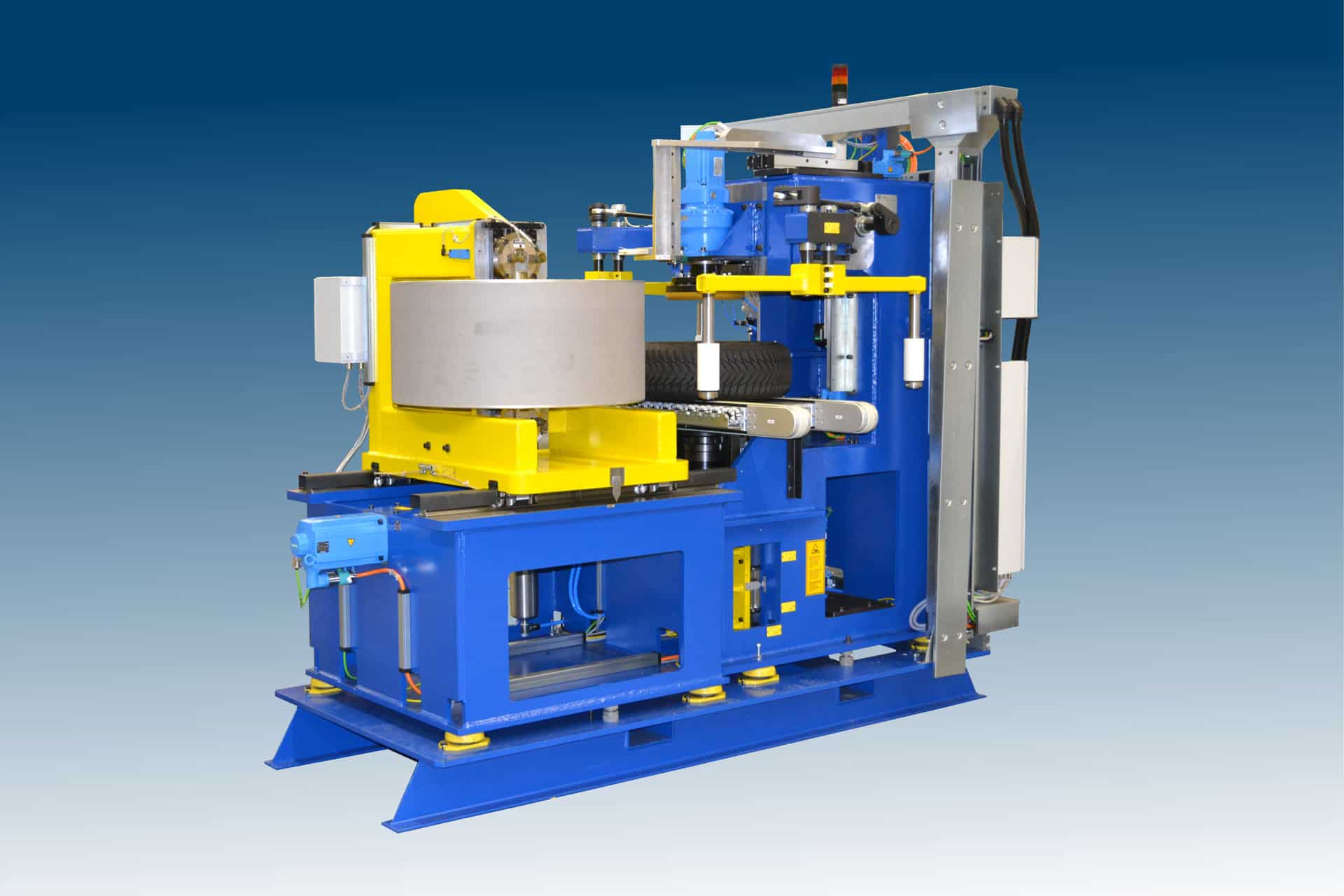

Tire Uniformity Grader (TUG) Machine

Force variation refers to the differences in stiffness and flexibility around the tire's circumference. These variations can cause the tire to exert uneven forces on the road, leading to vibrations and uneven wear. By identifying and compensating for these variations, manufacturers can produce tires that provide a smoother ride and better performance.

Affordable Alternatives for Tire Shops

While a TUG machine is too expensive for most tire shops, several companies have developed more affordable alternatives that mimic the same process. One of the most prominent is Hunter Engineering, which offers the "Road Force" machine. This device measures force variation similarly to a TUG machine but at a fraction of the cost, making it accessible to tire shops.

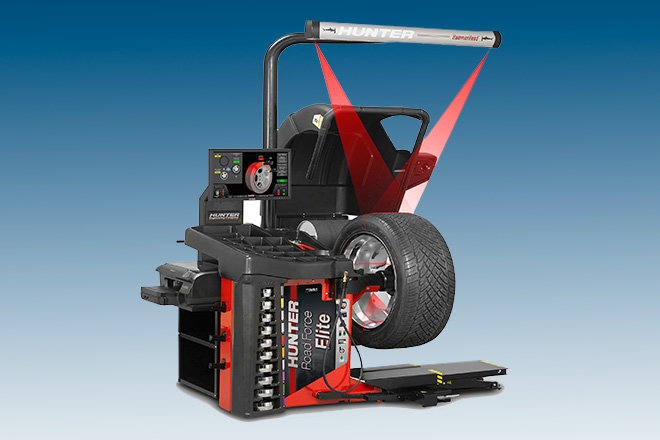

Road Force Machine for Tire Shops

The Road Force machine allows tire shops to identify and address uniformity issues in tires, improving the match mounting process and enhancing overall tire performance. By understanding and managing force variation, tire professionals can ensure that each tire operates as smoothly and efficiently as possible.

Understanding Tire Uniformity Harmonics

Tire uniformity is measured by breaking down the variations into mathematical waveforms. These waveforms are then analyzed as once-per-revolution, twice-per-revolution, three-times-per-revolution, and so on, sine waves.

Harmonic Analysis

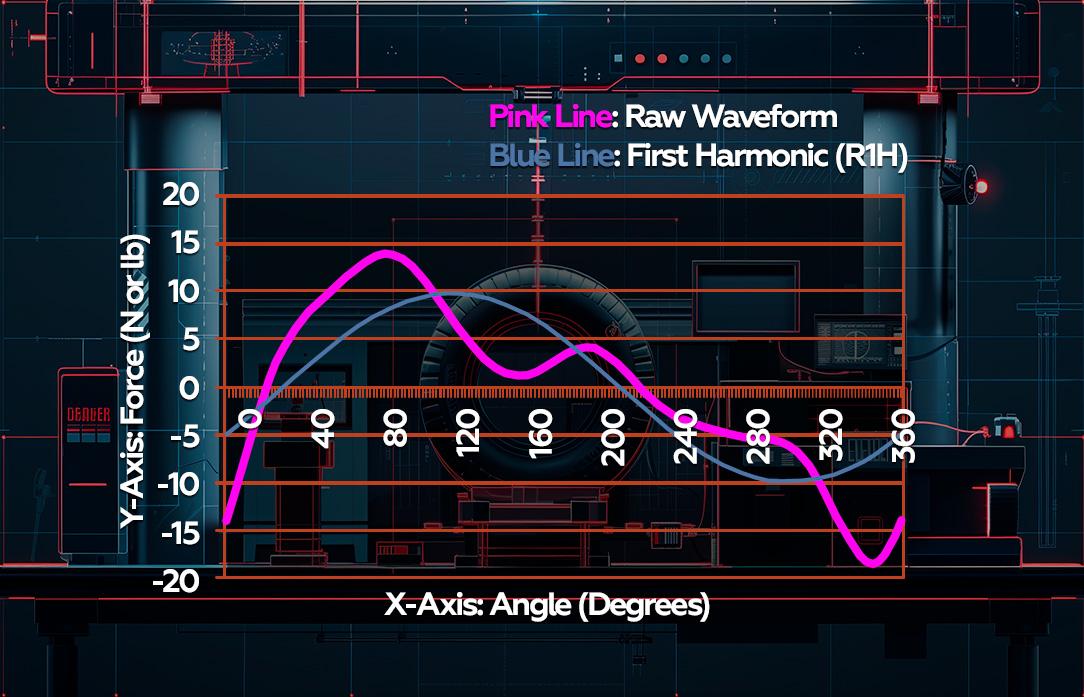

The pink line in the example represents a raw waveform, while the blue line shows the best fit first harmonic sine wave. This first harmonic, known as Radial 1st Harmonic (R1H), represents the primary uniformity issue. Higher-order harmonics, such as the second (R2H) and third (R3H) harmonics, also exist but are generally less significant.

Raw Waveform and First Harmonic (R1H) Comparison for Tire Uniformity

Uniformity can also be measured in the lateral (side-to-side) direction and the tangential (fore/aft) direction at the tire's footprint. These measurements use similar notations, like L1H for Lateral 1st Harmonic and T1H for Tangential 1st Harmonic. However, radial forces are usually the most significant because vehicle suspensions are most sensitive to these forces.

Vehicle Suspension Sensitivity

Vehicle suspensions operate as spring-mass-damper systems, which have a resonant frequency where movements are not damped out. This resonant frequency typically occurs in the 50 to 70 mph range (80 to 113 km/h). At this speed, the vehicle is most sensitive to radial first harmonic forces, making R1H the most critical factor in ride quality and tire performance.

Balance and Higher-Order Harmonics

Tire balance also operates on a once-per-revolution basis. Static balance affects the radial direction, while dynamic balance affects the lateral direction. Higher-order harmonics, such as R2H and R3H, usually have lower values than the first harmonic. Although these harmonics can be felt at lower speeds (R2H at 25 to 35 mph (40 to 56 km/h), R3H at 17 to 23 mph (27 to 37 km/h)), their impact is often minor compared to road noise and other irregularities.

Understanding these harmonics helps in optimizing tire uniformity and improving the overall performance and comfort of the vehicle. By focusing on the primary harmonics and balancing the tire properly, manufacturers and tire professionals can ensure a smoother and more stable ride.

Match Mounting in Vehicle Manufacturing

For vehicle manufacturers, ensuring superior ride quality is paramount, which is why they all practice match mounting. This process involves aligning the high point of the tire with the low point of the wheel to minimize out-of-round conditions and improve overall smoothness of the ride.

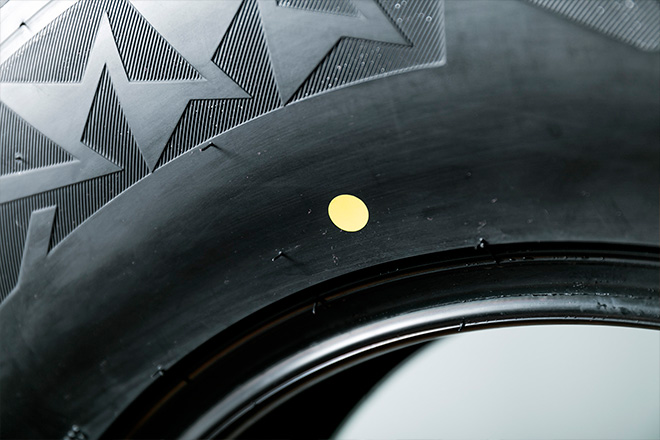

Yellow Dot Marking the Tire's High Point for Match Mounting

Different manufacturers have their unique marking systems for match mounting:

• Ford: Utilizes a green sticker to mark the wheel's low point and a long yellow sticker for the tire's high point.
• BMW: Uses a white dot on the tire.
• Toyota: Employs a red dot for tire marking.

The photo illustrates a setup where the tire's high point is marked with a yellow dot. This yellow mark indicates the tire's equilibrium point.

Lack of Standardization

There is minimal commonality among vehicle manufacturers regarding match mounting requirements. This lack of uniformity extends to both wheel and tire manufacturers. For instance, there was a time when vehicle manufacturers required wheel suppliers to place the valve hole at the low point of the wheel runout. However, this practice has largely been abandoned due to advancements in wheel and tire manufacturing that make it challenging to position the valve hole without affecting the wheel's runout.

FAQs

Most frequently asked questions about match mounting:

• Q: How does match mounting influence the longevity of your vehicle's suspension system?
  A: Match mounting can help reduce vibrations and stress, leading to less wear and tear on suspension components. While the benefits might be marginal, a more balanced assembly can contribute to a smoother ride and potentially extend the life of suspension parts.
• Q: Are there any high-tech innovations in match mounting that could revolutionize the process?
  A: High-tech innovations like laser-guided alignment systems and AI-driven diagnostics are set to revolutionize match mounting. Laser systems can precisely identify the high and low points on tires and wheels, ensuring perfect alignment. AI-driven diagnostics can analyze tire and wheel data in real-time, suggesting optimal match mounting configurations. These advancements could make the process more accurate, faster, and accessible for both professionals and DIY enthusiasts.
• Q: Can improper match mounting cause damage to your vehicle?
  A: While improper match mounting is unlikely to cause direct damage, it can lead to increased wear and tear on tires and suspension components. Misalignment can cause uneven tire wear, leading to shorter tire lifespan and potentially unsafe driving conditions. Additionally, increased vibrations can strain suspension parts, leading to premature failure. Ensuring proper match mounting helps maintain vehicle integrity and performance.
• Q: How does match mounting affect the acoustic comfort inside the vehicle?
  A: Match mounting can improve acoustic comfort by reducing road noise and vibrations transmitted into the cabin. A balanced tire and wheel assembly minimizes the variations that cause noise, resulting in a quieter and more pleasant driving experience. This is particularly beneficial for luxury vehicles where ride comfort and interior quietness are paramount.
• Q: What are some common myths about match mounting that need debunking?
  A: One common myth is that match mounting is only beneficial for high-performance or racing vehicles. In reality, it can improve ride quality and tire lifespan for any vehicle. Another myth is that match mounting is a complicated and time-consuming process; with modern tools and equipment, it can be done efficiently and accurately. Finally, some believe that match mounting is unnecessary with modern manufacturing standards, but even the best-made tires and wheels have slight imperfections that match mounting can address.
