Tire Terminology - Common Tire Terms and Glossary If you’re interested in tires, the following glossary goes over some tire basics.

Browse Glossary

A B C D E F G H I L M N O P R S T U V W Z
A
Air Pressure

Air pressure is a critical aspect governing both the performance and safety of tires. It's measured in either bars or PSI (Pounds Per Square Inch). Maintaining the correct air pressure is quintessential for achieving optimal handling, load capacity, and extending tire longevity. It's recommended to measure the tire pressure when tires are "cold," as the heat generated from driving can alter the pressure levels.

Ensuring the right tire pressure also aids in providing a comfortable ride by acting as a cushion against shocks and bumps on the road. Furthermore, it supports the load of the vehicle, making it a critical factor for safe and efficient driving, which can be easily monitored with a tire pressure gauge.

Table: Tire Pressure Conversion Chart

psi bar
1 0.07
2 0.14
3 0.21
4 0.28
5 0.34
6 0.41
7 0.48
8 0.55
9 0.62
10 0.69
11 0.76
12 0.83
13 0.90
14 0.97
15 1.03
16 1.10
17 1.17
18 1.24
19 1.31
20 1.38
21 1.45
22 1.52
23 1.59
24 1.66
25 1.72
26 1.79
27 1.86
28 1.93
29 2.00
30 2.07
31 2.14
32 2.21
33 2.28
34 2.35
35 2.41
36 2.48
37 2.55
38 2.62
39 2.69
40 2.76
41 2.83
42 2.90
43 2.97
44 3.04
45 3.10
46 3.17
47 3.24
48 3.31
49 3.38
50 3.45
51 3.52
52 3.59
53 3.66
54 3.73
55 3.79
56 3.86
57 3.93
58 4.00
59 4.07
60 4.14
61 4.21
62 4.28
63 4.35
64 4.42
65 4.48
66 4.55
67 4.62
68 4.69
69 4.76
70 4.83
71 4.90
72 4.97
73 5.04
74 5.11
75 5.17
76 5.24
77 5.31
78 5.38
79 5.45
80 5.52
81 5.58
82 5.65
83 5.72
84 5.79
85 5.86
86 5.93
87 6.00
88 6.07
89 6.14
90 6.21
91 6.27
92 6.34
93 6.41
94 6.48
95 6.55
96 6.62
97 6.69
98 6.76
99 6.83
100 6.89
105 7.24
110 7.58
115 7.93
120 8.27
125 8.62
130 8.96
135 9.31
140 9.65
145 10.00
150 10.34

Note: This table provides a quick reference for converting PSI to bar pressure to ensure accurate tire pressure maintenance for optimal tire performance and longevity. Full tire pressure conversion table available in our article.

Alignment

Alignment refers to the adjustment of a vehicle's wheels and suspension components to meet specific manufacturer specifications, ensuring the wheels are correctly oriented both vertically and horizontally. Proper alignment is crucial for optimal vehicle handling, tire longevity, and overall safety on the road.

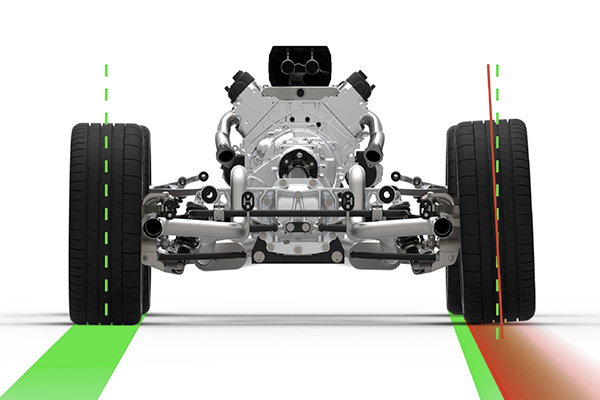

Alt text Illustration of Improper Wheel Alignment

Table: Primary Alignment Angles

Angle Description Impact on Vehicle Handling
Camber The tilt of the wheel when viewed from the front, affecting the tire's contact patch with the road. Influences grip and tire wear.
Caster The angle of the steering axis when viewed from the side, affecting the steering stability and ease of handling. Affects steering ease and stability.
Toe The inward or outward angle of the wheels when viewed from above, affecting the straight-line stability of the vehicle. Influences straight-line stability.
All-Season Tires

All-Season Tires are designed to perform efficiently throughout the year, suitable for various weather conditions. They are standardized by the Rubber Manufacturer's Association, ensuring adaptability from summer heat to winter chill. These tires bear an alpine symbol on their sidewall, indicating their capability in snow, offering a balance of performance features for drivers seeking convenience and moderate weather protection.

All-Season Traction Identifier (M+S, M/S, M&S)

The All-Season Traction Identifier, commonly recognized by the markings M+S, M/S, or M&S (Mud and Snow) on the tire sidewall, signifies a tire's adherence to performance criteria set by the Rubber Manufacturers Association for mud and snow traction. This classification, while not indicative of a full-fledged winter tire, designates the tire's capacity to perform under moderate mud and snow conditions, typically featuring tread designs that expel build-ups of these materials for sustained traction. It's a standard feature on all-season tires, marking them as versatile options suitable for varied, though not extreme, weather conditions.

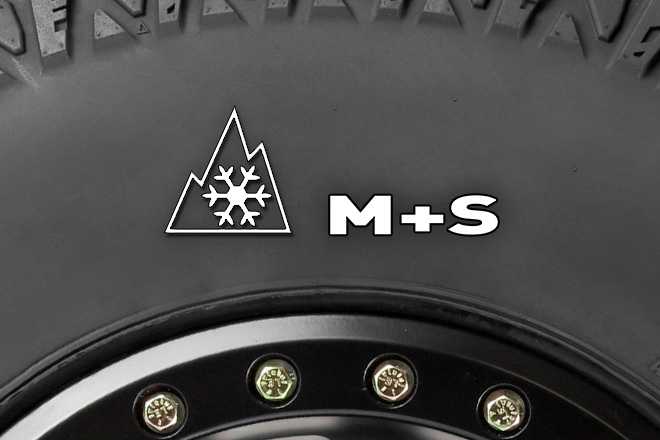

Tires bearing the M+S marking are also often adorned with a symbol of an alpine snowflake, showcasing their enhanced traction capabilities in snowy conditions.

Alt text Alpine Snowflake Symbol and M+S Designation on Tire Sidewall

All-Terrain Tires (A/T)

All-Terrain (A/T) tires are meticulously engineered for comprehensive terrain adaptability, offering superior traction across heterogeneous landscapes, including muddy, snowy, and irregular terrains. These tires integrate durability and performance, making them suitable for off-road conditions while maintaining on-road driving comfort. Notably, A/T tires are available in a spectrum of sizes, both imperial and flotation, to accommodate diverse vehicle specifications and performance criteria.

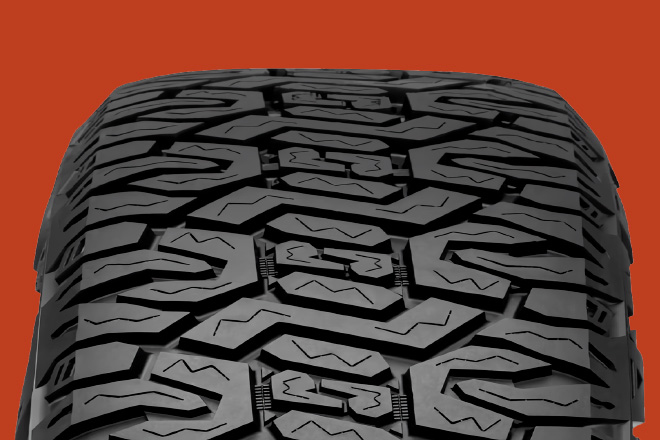

Alt text Close-Up View of All-Terrain Tires

Key Features:

  • Suitable for roads of varying quality, with a 50/50 on-road and off-road usage balance.
  • Medium off-road capability.
  • Ideal for rural areas requiring frequent transitioning between road types.
  • Moderately aggressive tread pattern to handle mixed terrains.
All-Wheel Drive (AWD)

AWD stands for All-Wheel Drive, a system where power is delivered to all four wheels simultaneously. Unlike traditional two-wheel drive vehicles, AWD vehicles offer enhanced traction and stability, particularly in challenging road conditions such as snow, ice, or wet surfaces. AWD systems can vary in complexity and functionality, ranging from full-time all-wheel drive to systems that engage automatically when slip is detected.

Table: Characteristics and Descriptions of All-Wheel Drive (AWD)

Characteristic Description for AWD
Drivetrain System Powers all four wheels simultaneously for optimized traction.
Ideal Usage Varied road conditions like rain, slush, or light snow; urban and highway driving.
Variable Power Distribution Dynamically adjusts power between front and rear wheels based on conditions.
Traction Provides enhanced traction in diverse road conditions.
Fuel Efficiency Generally less efficient than 2WD but can vary based on system and vehicle design.
Maintenance Typically has a higher maintenance cost than 2WD due to added components.

Note: While AWD provides increased traction in diverse road conditions, it is not a replacement for winter tires in snowy or icy conditions. Proper tires are essential for maximum traction and safety.

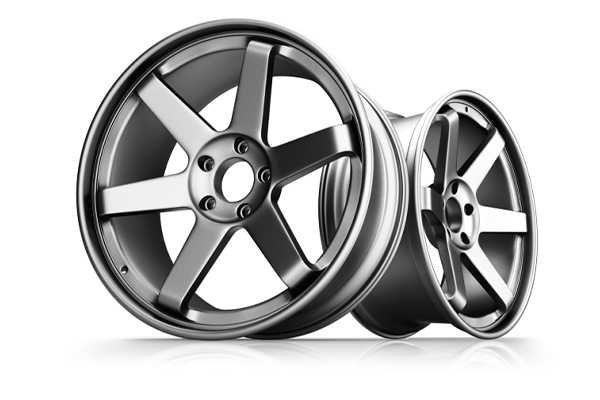

Aluminium (Alloy) Wheels

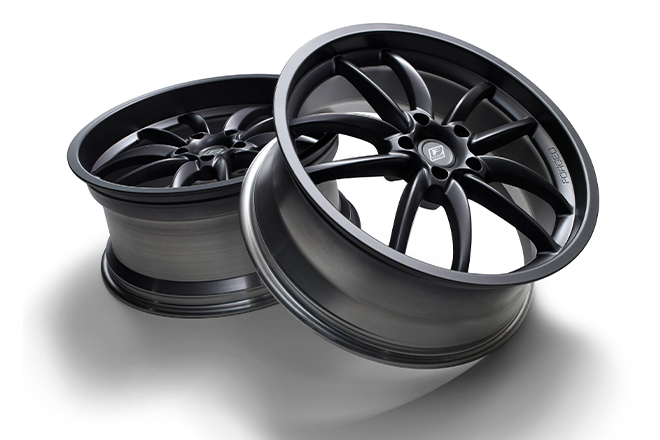

Aluminium wheels, commonly known as alloy wheels, are crafted from a mixture of aluminum and nickel. Predominantly made through a casting process, these wheels are known for their strength despite being lighter than steel counterparts. They excel in heat dissipation, offer diverse sizing and style options, and typically boast a more aesthetically pleasing appearance.

Alt text Illustration of Aluminum Wheels (Alloy Wheels)

The lightness of aluminum wheels contributes significantly to vehicle performance, enhancing acceleration, braking, and handling. Furthermore, their superior heat conductivity reduces the risk of brake failure under harsh driving conditions. The production process allows for a multitude of designs, making them customizable to consumer preferences. Nevertheless, they demand diligent care to avoid corrosion, and they tend to be pricier compared to steel alternatives.

Table: Comparison of Aluminum and Steel Wheels

Feature Details
Weight Lighter than steel, contributing to better vehicle performance
Heat Dissipation Superior, reducing risks associated with brake heat build-up
Design Variety Wide range due to flexible manufacturing processes
Maintenance Requires regular care to prevent corrosion
Cost Higher compared to steel wheels
Aquaplaning (Hydroplaning)

Aquaplaning, or hydroplaning, occurs when a vehicle's tires encounter more water than they can disperse while traveling on wet roads. As speed increases, water pressure in front of the tire forces a layer of water underneath, lifting the tire off the road and leading to a loss of traction, steering, and braking control.

This phenomenon is particularly dangerous because it results in the vehicle's loss of contact with the road, making it unresponsive to steering inputs.

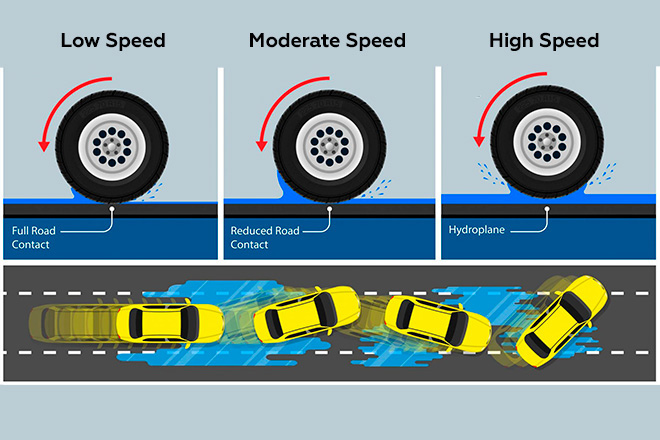

Alt text Aquaplaning (Hydroplaning) Phenomenon Illustration

It's most common during heavy rain or standing water and can be exacerbated by factors such as tire wear, insufficient tread depth, high speeds, and sudden maneuvers. Preventative measures include reducing speed during wet conditions, maintaining proper tire inflation and tread depth, and avoiding standing water when possible.

Aspect Ratio

Aspect Ratio in tire terminology illustrates the ratio of the tire's sidewall height to its width, denoted as a percentage. For instance, an aspect ratio of 45 means the tire's sidewall height is 45% of the tire's width. In the tire size designation 225/45R17, "45" represents the aspect ratio.

The aspect ratio of a tire is a critical parameter that significantly influences the vehicle's handling characteristics and ride comfort.

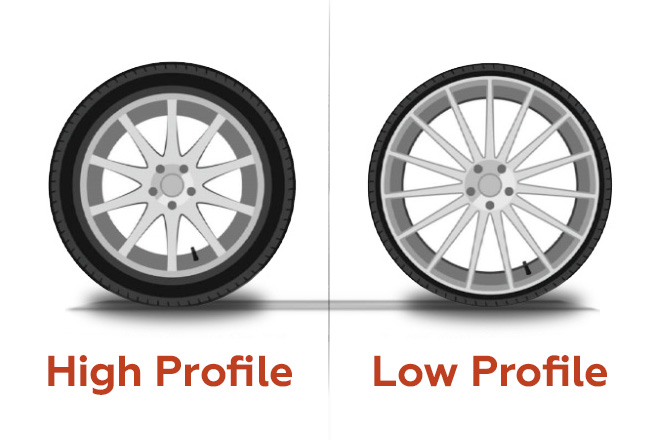

Alt text Comparison of High and Low Profile Tires

On the right, the low profile tire is showcased, commonly associated with sports or performance-oriented vehicles. With a lower aspect ratio, say 30 or 40, the reduced sidewall height is not merely a stylistic choice but a functional one, aimed at enhancing handling precision and road feedback, albeit potentially compromising ride comfort.

Conversely, on the left, the high profile tire is depicted, often chosen for comfort-oriented or off-road vehicles. A higher aspect ratio, such as 70 or 80, entails a taller sidewall, which serves as a buffer to absorb road irregularities, promoting a smoother, more comfortable ride at the potential expense of handling sharpness.

Asymmetrical Tires

An asymmetrical tire features a tread pattern distinctly split, with each side serving different purposes. This design optimizes performance across various road conditions, the outer area typically enhances cornering, the inner part improves wet traction, and the central portion maintains stability at high speeds.

Alt text Close-up View of Asymmetrical Tire Tread Pattern

Correct installation is vital, with "outside" indicating the side of the tire that must face away from the vehicle, ensuring each tread zone functions as intended.

B

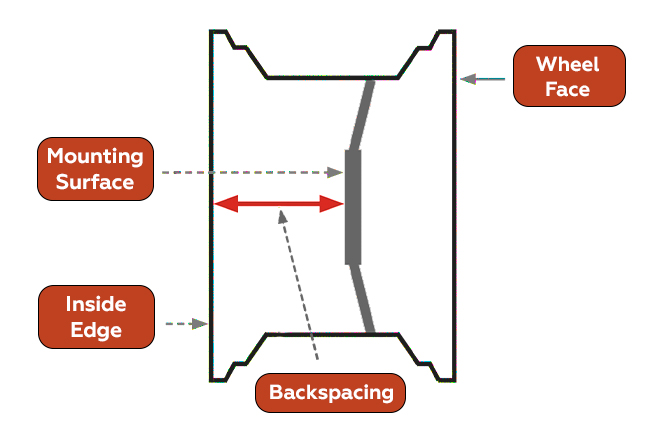

Backspace (Backspacing)

Backspace, also known as backspacing, refers to the distance from the mounting pad of a wheel to its back edge. This measurement is crucial for determining how far the wheel will sit inward or outward from the vehicle's fender, impacting clearance and alignment with suspension and brake components.

Alt text Illustrating Backspace (Backspacing) Measurement

Additionally, accurate backspace information is a requisite for effectively utilizing our Tire Calculator, aiding in the exploration of diverse wheel and tire setup options to ascertain optimal performance and aesthetic appeal.

Bead

The bead is the tire's inner circumference designed specifically to seat snugly against the rim, creating an airtight interface. Constructed with robust steel wires, often buttressed by ply cords, it ensures the tire's stability and adherence to the rim.

Alt text Bead: Component of Tire Construction

The bead's configuration is integral not just for maintaining air pressure within the tire, but also for securing the tire to the rim, preventing it from shifting or detaching even under duress, such as high-speed maneuvers or while traversing challenging terrains.

Belt

A Belt in tire construction consists of layers of cords encased in rubber, situated between the tread and the carcass. These cords, usually made from materials like steel, nylon, or polyester, reinforce the tire's structure, ensuring stability and optimal road contact.

The belt's ply angle—how the cords are arranged—affects the tire's flexibility and responsiveness. A tighter ply angle strengthens lateral stability, while a looser one enhances cushioning. The belt also plays a role in heat dispersion, safeguarding the tire against excessive heat-related wear. Especially in high-performance tires, the belt design is crucial for maintaining tire shape during rapid maneuvers.

Alt text Belt: Component of Tire Construction

Bias Ply

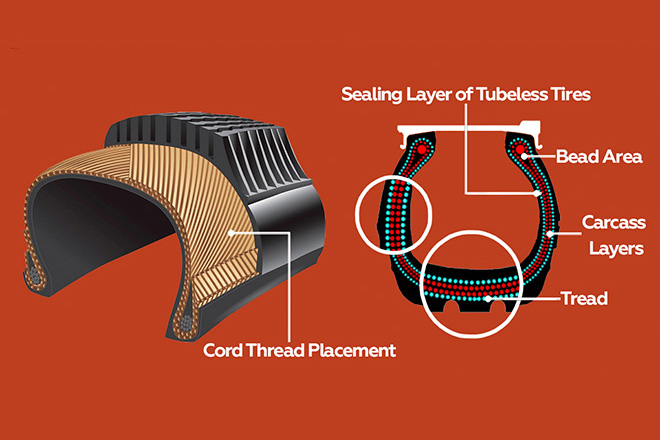

A type of tire construction where the cords stretch diagonally from bead to bead, with layers laid over one another to form a crisscross pattern. Common in older vehicles, off-road, and agricultural use. This structure offers durability and a smooth ride on rough surfaces but less efficiency at high speeds compared to radial tires.

Alt text Diagonal (Bias) Tire Construction

Table: Key Features of Bias Ply Tires

Feature Bias Ply Description
Construction Cords stretch diagonally from bead to bead, with layers overlapping in a crisscross pattern.
Durability Robust design that resists punctures and tears, making it ideal for tough, uneven terrains.
Ride Quality Provides a smoother ride on rough surfaces due to its sturdy construction.
Heat Dispersion Generates and retains more heat, less suitable for high-speed applications.
Tread Life Generally exhibits a shorter tread life compared to other tire types.
Fuel Efficiency Tends to be less fuel-efficient due to higher rolling resistance.
Brakes

Brakes are a crucial vehicle system that enables slowing down or stopping by applying friction to the wheels. They come in various types, like disc brakes and drum brakes, each with distinct mechanisms and performance characteristics. Understanding the brake system is essential for safe driving and effective vehicle maintenance. Moreover, when altering wheel or tire setups, ensuring adequate clearance for brake components is crucial, which can be verified using our Tire Calculator.

Braking Distance

Braking Distance is the length a vehicle travels from the point of brake application to a complete stop, influenced by various factors such as speed, tire quality, and road conditions.

Table: Factors Influencing Braking Distance

Factor Description Implication
Vehicle Speed Higher speeds increase the braking distance as more kinetic energy needs to be dissipated. Drive at safe speeds to reduce braking distance
Vehicle Weight Heavier vehicles require more stopping force, thus increasing braking distance. Be cognizant of load carrying and its impact on stopping
Tire Type Performance tires may provide better grip, aiding in reducing braking distance. Choose tires suited to driving conditions
Road Conditions Wet or icy roads can significantly extend braking distance. Exercise caution in adverse conditions
Brake System Efficiency Effective and well-maintained brakes are crucial for minimizing braking distance. Regular brake maintenance is essential
C
C-Type Tire (Commercial-Rated)

C-Type tires, marked with a "C" after the wheel diameter (e.g., 225/75R16C), are commercial-rated, designed to handle higher loads than standard tires. They're synonymous with durability and reliability in demanding conditions, often seen on light lorries.

The "C" can signify "Commercial" or "Cargo," indicating the tire's suitability for transport needs. Unique to C-Type tires is a dual marking indicating the maximum load for single or twin tire configurations.

Key Features:

  • Higher load rating for commercial use.
  • Used on light lorries and for transport needs.
  • Dual load marking for various configurations.
  • Reinforced for durability in demanding conditions.
Camber

Camber denotes the angle of a vehicle's wheels relative to the vertical axis when observed from the front or rear. It is a critical alignment parameter that influences a vehicle's handling characteristics.

Understanding the camber angle and its implications on vehicle handling and tire wear is paramount for achieving desired driving dynamics and prolonging tire lifespan.

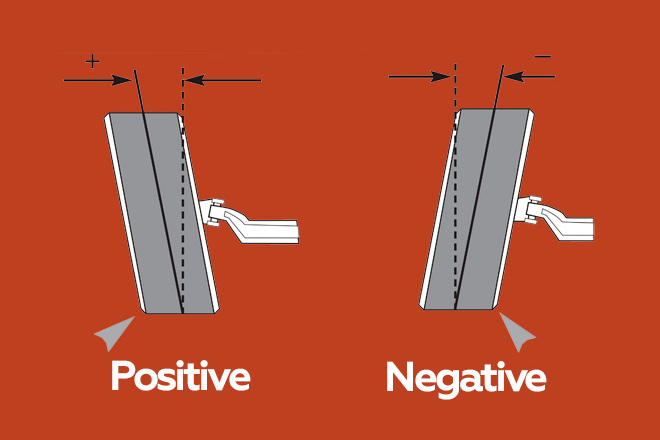

Alt text Image showcasing Positive Camber and Negative Camber.

Table: Camber Variations and Implications

Camber Type Description Ideal Usage Handling Implication
Negative Camber Wheels are angled inward at the top towards the vehicle's centerline, enhancing cornering performance due to increased lateral grip. Motorsports, spirited driving, sporty vehicles Improved cornering stability
Positive Camber Wheels are angled outward at the top away from the vehicle's centerline, aiding in stability during straight-line travels and potentially improving ride comfort. Cruising, off-roading, heavy load carrying Increased straight-line stability
Zero Camber Wheels are vertically aligned with no inward or outward tilt, aiming for a balance between straight-line stability and cornering performance. Everyday driving, general-purpose vehicles Balanced handling
Carcass

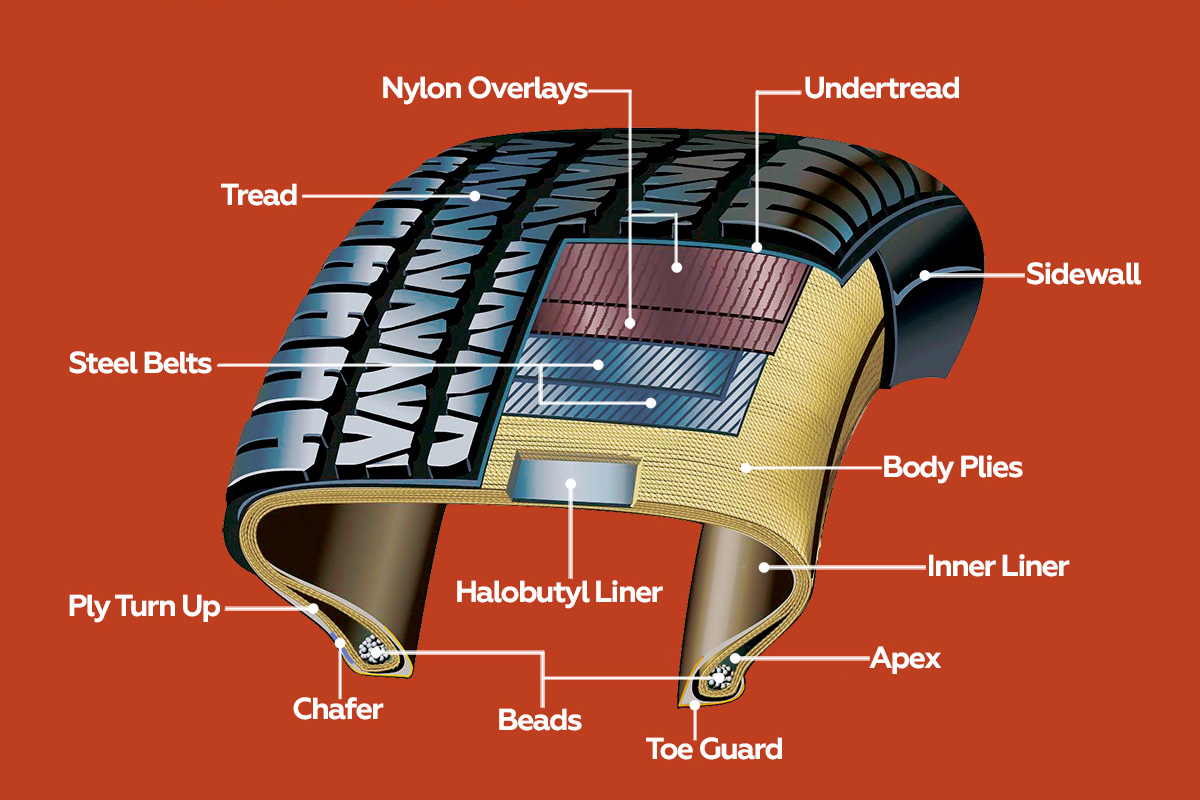

The Carcass, or skeleton, is the foundational structure of a tire, located beneath the tread and made up of multiple plies anchored to the beads on each side. This internal framework, usually consisting of textile cords encased in rubber, provides the tire with strength and flexibility. It absorbs stresses and impacts from road conditions, maintaining the tire's shape and integrity while supporting the vehicle's weight, a fundamental component directly influencing a tire's performance, durability, and safety characteristics.

Caster

Caster refers to the angle between the steering axis (the axis around which the front wheels turn) and the vertical axis of a vehicle when viewed from the side. This angle assists in the self-centering action of the steering, affecting the vehicle's stability and steering ease.

Positive caster is when the steering axis tilts towards the driver. Most modern vehicles have positive caster to improve steering stability and minimize wheel alignment changes during cornering. While it aids stability, excessive caster might make steering a bit heavier.

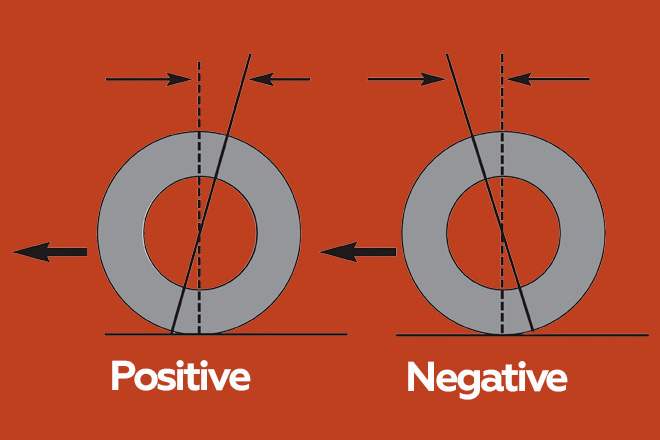

Alt text Image showcasing Positive Caster and Negative Caster, displaying the contrasting wheel alignment angles.

Note: Proper caster settings are crucial for balancing steering ease and stability. While it's not typically adjusted as frequently as camber or toe, it's essential to ensure it's within manufacturer specifications, especially after a collision or suspension modifications.

Center Bore / Hub Bore

The Center Bore, also known as the Hub Bore, refers to the hole in the center of a wheel that aligns it properly with the hub of a vehicle. This precise fit ensures the wheel is centered correctly and helps in distributing the load. While the Center Bore primarily aids in the installation process, it's crucial for safety and wheel balance. An improper fit can result in vibrations, uneven tire wear, and potential stress on wheel hardware. It's essential to choose wheels with the correct center bore size for your vehicle or use hub-centric rings to adjust the fit. An improper size can compromise safety and driving comfort.

Chafer

A chafer is a protective strip found in the bead area of a tire, cushioning the space between the tire and the rim. It's designed to prevent damage from friction or pressure, helping to prolong the tire's lifespan. This component is crucial in maintaining tire stability and air pressure retention, especially during demanding driving conditions.

Alt text Chafer: Component of Tire Construction

The chafer reinforces the tire's bead area, reducing wear from the continuous interaction with the wheel flange. Made of durable materials like nylon or aramid, it ensures even load distribution and protects the bead from potential damages during hard cornering or impacts, crucial for maintaining the tire's structural integrity.

Chassis

The chassis is the vehicle's foundation, linking the body to the road and integrating essential components like suspension, shock absorbers, steering, brakes, and wheels. It impacts driving comfort and stability, with its design affecting the balance between safety and comfort. A rigid chassis enhances stability but may reduce comfort, while a flexible chassis increases comfort but might affect handling. Proper chassis setup is crucial for optimal driving performance.

Construction

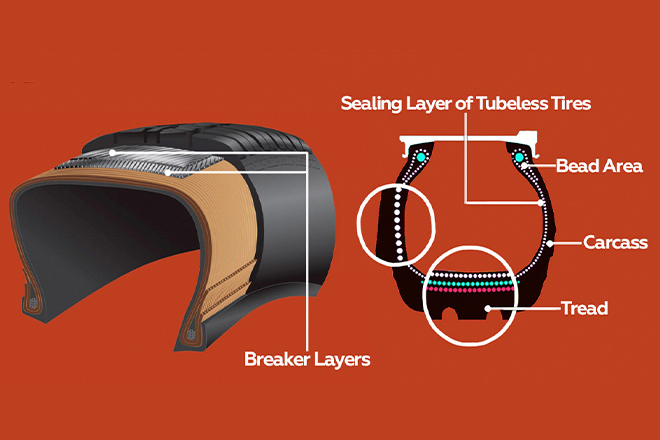

"Construction" describes the arrangement of plies, or layers of reinforcing fabric, in a tire. In "R" or radial construction, plies run perpendicularly from the tire's center, providing improved handling and fuel efficiency. In "B" or bias construction, plies are laid diagonally, creating a sturdier build ideal for heavy-duty usage. The type of construction affects ride comfort, durability, and the tire's performance characteristics.

Contact Patch/Footprint

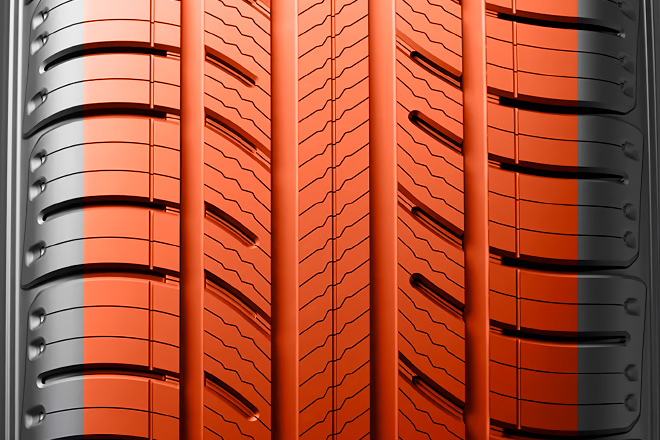

The Contact Patch, also known as the Footprint, signifies the exact portion of the tire in direct contact with the road. This essential segment is the conduit through which the vehicle's dynamic forces of acceleration, braking, and steering are transferred to the ground. Factors such as the tire's architecture, air pressure, burden, and the vehicle's alignment influence the size and shape of the contact patch or footprint, playing a decisive role in the tire's traction, handling, and tread wear — key elements in ensuring optimal driving safety and performance.

Alt text Close-up Illustration of the Contact Patch/Footprint on a Tire

Cord

"Cord" refers to the twisted fibers or filaments used in the plies or belts of a tire to enhance its strength and structural integrity. Common materials for cords include aramid, fiberglass, polyester, nylon, or steel, each offering different benefits in terms of weight, resilience, and resistance to heat and tension. The choice of cord material significantly influences a tire's durability, handling, and overall performance.

Crossover Utility Vehicle (CUV)

A Crossover, or CUV (Crossover Utility Vehicle), refers to a vehicle that blends the features of an Sport Utility Vehicle (SUV) with those of a passenger car, often offering better fuel efficiency, handling, and ride comfort compared to traditional SUVs, while still providing a high seating position and a versatile interior.

D
Directional Tires

Tires designed with a tread pattern that moves in a single direction, resembling the appearance of arrows or V-shapes. This unique design enhances water evacuation, reducing the risk of hydroplaning and improving grip on wet surfaces.

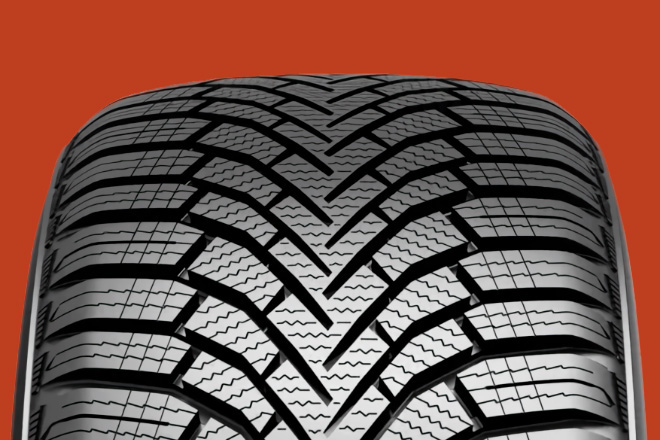

Alt text Close-up View of Directional Tire Tread Pattern

DOT Number

The "DOT Number" is a tire's unique identity, mandated by the Department of Transportation, that encodes vital information right on the tire's sidewall. Each segment of this alphanumeric code holds specific details about the tire, from the company that manufactured it to the exact time it was produced. Understanding this code is essential for safety, recalls, and verifying tire age.

Table: "Decoding a Tire's DOT Number"

Component Description Example
Manufacturer ID First two letters or numbers; identifies the manufacturing company XY
Plant Code Next two letters; pinpoints the specific factory of production AB
Tire Size Follows the Plant Code; indicates the tire's size 1234
Tire Type Optional segment; may denote a specific tire feature or model Z
Date Code Final four numbers; signifies the week and year of manufacture 0123 (Manufactured in the 1st week of 2023)
Double Marking

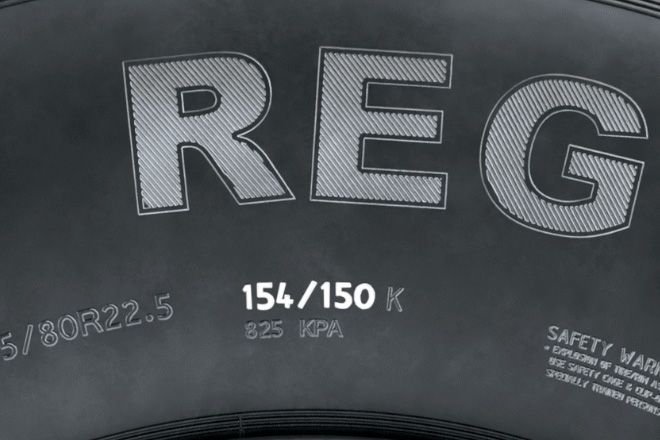

Double Marking on light trucks or van tires, also referred to as C tires, signifies the load index for both single and twin tire configurations. For instance, a marking of 205/55 R16 C 98/96H indicates a load capacity of 750 kg for a single tire and 710 kg for twin tires at a tire pressure of 2.5 bar.

Alt text Dual Load Index

The presence of two figures for the load index, with the lower number representing the maximum load capacity for twin tires, provides crucial information for ensuring safe and appropriate tire usage based on the vehicle's loading conditions.

Table: Interpretation of Double Marking

Parameter Sample Double Marking Explanation
Double Marking Size 205/55 R16 C 98/96H Tire size and load index markings
Single Tire Load Index 98 Load capacity rating for single tire configuration
Twin Tire Load Index 96 Load capacity rating for twin tire configuration
Single Tire Load Capacity (kg) 750 Maximum load a single tire can carry
Twin Tire Load Capacity (kg) 710 Maximum load twin tires can carry (per tire)
Recommended Tire Pressure (bar) 2.5 Optimal tire pressure for specified load indices
Drive Type

"Drive Type" refers to the type of drive depending on which wheels drive the car. It specifies the wheels that are powered by the vehicle's engine, a factor crucial in determining a vehicle's handling and capabilities. The variation in powered wheels among vehicles, such as Front-Wheel Drive (FWD), Rear-Wheel Drive (RWD), All-Wheel Drive (AWD), or Four-Wheel Drive (4WD), establishes diverse driving dynamics and performance outcomes. This aspect is essential in assessing the suitability of a vehicle for different driving conditions and terrains.

Table: Drive Types and Their Characteristics

Drive Type Drive Wheels Characteristics
Front-Wheel Drive (FWD) Front wheels Improved traction in uphill and slippery conditions; more economical due to simpler design; common in sedans.
Rear-Wheel Drive (RWD) Rear wheels Enhanced balance and acceleration; often used in performance or luxury vehicles.
All-Wheel Drive (AWD) All four wheels Superior grip in diverse driving conditions; ideal for off-road or inclement weather; found in SUVs and performance cars.
Four-Wheel Drive (4WD, 4x4) All four wheels Optimized for rugged off-road use with selectable drive modes; common in off-road vehicles.
Durometer

The durometer is an essential instrument in tire manufacturing, used to measure the hardness of rubber compounds, a critical factor influencing tire performance characteristics such as grip, wear resistance, and handling. Measurements are conducted using the Shore scale, categorized into types (A, D, OO, etc.) for different rubber materials. A standard durometer reading for passenger vehicle tires might be around "60 Shore A," indicative of medium hardness.

Table: Shore hardness scales.

Shore Scale Type Description Common Materials
Shore A Used for softer rubbers, measures resistance to surface penetration. Tire rubber, softer plastics
Shore D Used for harder rubbers and plastics, measures resistance to harder indentation. Hard plastics, formica, epoxies
Shore OO Used for very soft materials, measures compression and has a lower range of hardness. Sponge, foam rubber
E
Engine

The engine is a fundamental component of a vehicle, responsible for generating the power needed to move the vehicle by converting fuel into mechanical energy. Engines come in various types and configurations, often described by their size (e.g., 2.0 L), the number of cylinders (e.g., I4 for inline-four), and the type of fuel they use (e.g., Petrol or Diesel).

Understanding the engine specifications of a vehicle helps in assessing its performance, fuel efficiency, and maintenance requirements which are crucial for buyers, sellers, and operators.

Table: Common Engine Specifications

Specification Example Description
Engine Size 2.0 L The engine's displacement volume
Cylinder Configuration I4 The arrangement and number of cylinders
Fuel Type Petrol The type of fuel the engine uses
Power 237 hp The engine's power output
Extra Load (XL) Tire

A Reinforced (XL) Tire, denoted by the "XL" (Extra Load) marking, is designed with stronger sidewalls to handle heavier loads compared to standard tires. These tires are engineered to withstand higher inflation pressures which support carrying extra weight.

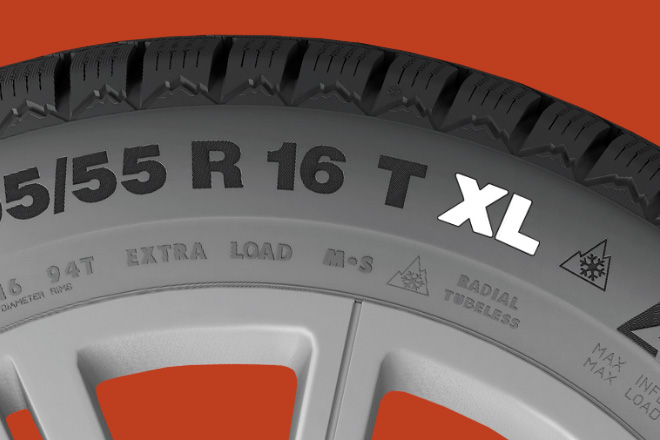

Alt text Tire with XL Marking

The robust construction of Reinforced (XL) Tires makes them suitable for heavier vehicles or scenarios where higher load-carrying capacity is required. They offer enhanced performance and safety for loaded vehicles, making them a favorable choice for SUVs, vans, or light trucks.

Table: Characteristics of Reinforced (XL) Tires

Feature Description Benefit
Reinforced Sidewalls Stronger sidewall construction to handle extra weight Increased Load Capacity
Higher Inflation Pressure Can be inflated to higher pressures compared to standard tires Enhanced Stability and Handling
Load Rating Higher load rating indicating the weight it can carry Suitability for Heavier Vehicles
Durability Often exhibit enhanced durability and longevity Reduced Wear and Tear

Note: While Reinforced (XL) Tires offer increased load-carrying capacity and stability, it's crucial to ensure they are inflated to the recommended pressures to avail these benefits.

F
Fender

The fender is a vehicle component surrounding the wheel well, serving protective and aesthetic functions. It guards the car body against road debris and splashes and influences the vehicle's aerodynamics and appearance. Fenders vary in types and can be tailored for different driving conditions and styles.

Fender Clearance

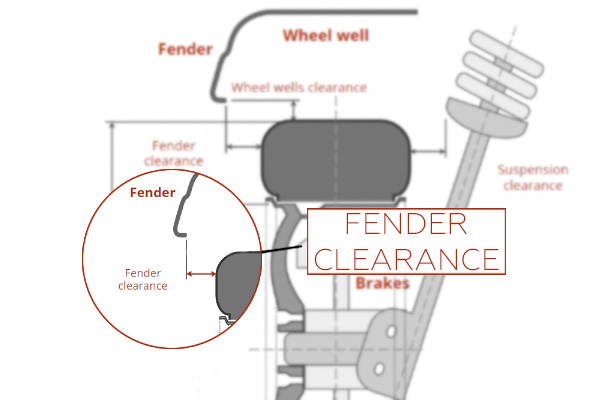

Fender Clearance refers to the amount of space between the tire and the fender, ensuring there's no contact between them during vehicle operation. Adequate clearance is crucial to prevent tire rubbing, which can cause tire damage and adversely affect vehicle handling.

Alt text Illustrating Fender Clearance Measurement Using Our Tire Calculator

Evaluating Fender Clearance is a vital step when considering a change in tire size, wheel offset, or even suspension modifications. It helps in determining the maximum tire size that can be accommodated without interference. Understanding this term is essential for effectively using our Tire Calculator to ensure accurate fitment and optimal performance.

Table: Factors Affecting Fender Clearance

Factor Description Implication on Clearance
Tire Size The dimensions of the tire, including its diameter, width, and aspect ratio. Larger tires may reduce clearance.

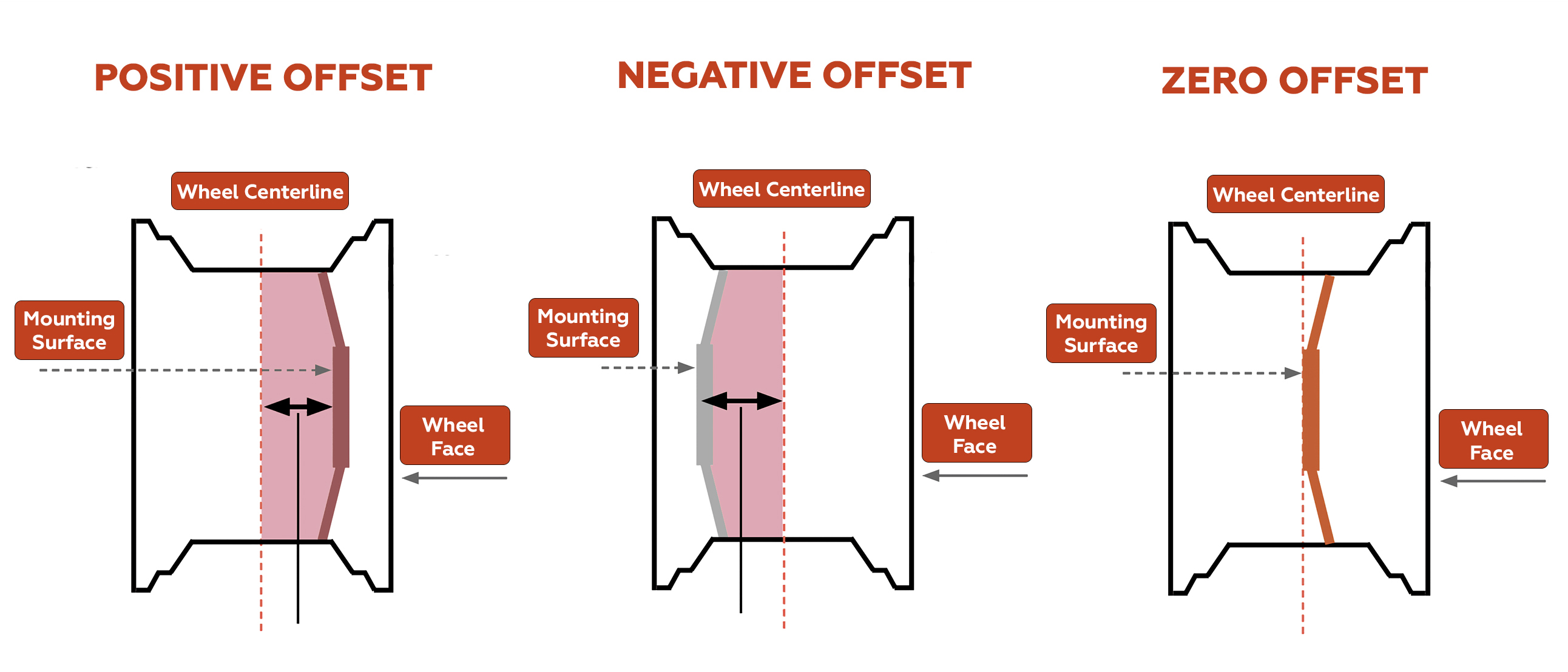

Wheel Offset The distance from the wheel's mounting surface to its centerline. Incorrect offset may cause tire to rub.
Suspension Geometry The design and alignment settings of the suspension system. Altered suspension can change clearance.
Vehicle Load The weight the vehicle is carrying, including passengers and cargo. Increased load can reduce clearance.
Fender Modifications Alterations to the fender or wheel well area to increase space, such as rolling or pulling fenders. Modifications can increase clearance.
Forged Wheels

Forged wheels are crafted from solid aluminum blocks. Their creation involves shaping the metal under extreme pressure, resulting in wheels that are stronger, lighter, and more durable than standard aluminum or steel wheels. Their blend of performance and aesthetic appeal makes them a preferred choice for luxury and performance vehicles.

Compared to traditional steel and standard aluminium wheels, forged wheels stand out for their exceptional durability and heat resistance, making them suitable for challenging driving conditions.

Alt text Close-up of Two Forged Wheels

Table: Characteristics of Forged Wheels

Characteristic Description
Material Made from high-strength solid aluminum.
Strength Superior strength compared to steel and standard aluminum wheels.
Weight Lighter than steel, enhancing vehicle performance and efficiency.
Durability Highly resistant to wear and deformation, suitable for challenging conditions.
Heat Resistance Excellent heat dissipation, ideal for high-performance applications.
Design Flexibility Offers a wide range of custom designs and finishes.
Applications Preferred in luxury and performance vehicles.
Cost Generally more expensive due to the complex manufacturing process and material quality.
Four-Wheel Drive (4WD)

A drivetrain system that distributes power to both the front and rear axles simultaneously. Primarily designed for off-road and challenging terrains, 4WD is distinct from All-Wheel Drive (AWD), which offers continuous power to all wheels but is typically used in various road conditions, including dry pavement.

4WD systems come in two main types: part-time and full-time. Part-time 4WD allows the driver to switch between two-wheel drive (typically rear-wheel drive) and 4WD as conditions necessitate. This is beneficial for situations where 4WD is not always needed. Full-time 4WD, on the other hand, operates constantly, distributing power between front and rear axles. Some full-time 4WD systems also offer a differential lock for more demanding off-road scenarios.

Table: Characteristics and Descriptions of 4-Wheel Drive (4WD)

Characteristic Description for 4WD
Drivetrain System Distributes power to both the front and rear axles
Ideal Usage Off-road conditions, challenging terrains, and towing
Selectable vs. Full-time Some 4WD systems are selectable, others are full-time
Traction Provides enhanced traction, especially off-road
Fuel Efficiency Typically less efficient than 2WD due to added weight
Maintenance May require more maintenance due to added complexity
Front-Wheel Drive (FWD)

A drivetrain system where the engine's power is channeled to the vehicle's front wheels. This design promotes better fuel efficiency and typically allows for more cabin space due to its compact nature.

Table: Characteristics and Descriptions of Front-Wheel Drive (FWD)

Characteristic Description for FWD
Drivetrain System Directs power primarily to the vehicle's front wheels.
Ideal Usage Everyday urban and highway driving in moderate conditions.
Efficiency Offers better fuel efficiency due to reduced drivetrain weight.
Traction Good traction for general conditions, but may struggle on slippery or uphill terrains.
Cost and Design Generally cost-effective and simpler in design.
Interior Space Often allows for more cabin space due to compact drivetrain components.
G
Generation

In automotive terms, a "Generation" refers to a series of models from a particular manufacturer that share common design elements, technologies, and engineering structures, typically over a range of years. Each generation may encompass various updates, enhancements, or redesigns that set it apart from previous or subsequent generations.

Taking the Ford Mustang as an example, this vehicle illustrates how generational changes in design and technology can reflect broader automotive trends. Each Mustang generation echoes shifts in consumer preferences and technological advances. The 6th Generation's introduction of the EcoBoost engine, for instance, responded to the growing demand for efficient yet powerful engines. Such adaptations showcase how car models evolve across generations to align with market demands and new technologies, endowing each generation with its distinct characteristics.

Table: Example Generation Specifications

Specification 6th Gen Mustang (2015-2021) 5th Gen Mustang (2005-2014) Differences
Production Years 2015 - 2021 2005 - 2014 Updated design and technology in 6th Gen
Sales Regions Global Global Same global reach
Power Up to 460 hp Up to 315 hp Higher horsepower in 6th Gen
Engine 2.3L EcoBoost to 5.0L V8 4.0L V6 to 5.4L V8 Introduction of EcoBoost engine in 6th Gen
Trim Levels EcoBoost, GT, Shelby V6, GT, Shelby Expanded trim levels with EcoBoost in 6th Gen
Center Bore / Hub Bore 70.5 mm 70.5 mm Same center bore size
Bolt Pattern (PCD) 5x114.3 5x114.3 Same bolt pattern
Wheel Fasteners Lug nuts Lug nuts Same fastener type
Thread Size M14 x 1.5 M12 x 1.25 Larger thread size in 6th Gen
Wheel Tightening Torque 150 Nm 100 Nm Higher tightening torque in 6th Gen
Grooves

Grooves are the circumferential channels found between the tread ribs on a tire. They are integral to a tire's design, primarily serving to channel water away from the tread area to maintain optimal contact with the road, thereby reducing the risk of hydroplaning. Additionally, grooves aid in providing traction and enhancing the tire's grip, both in wet and dry conditions.

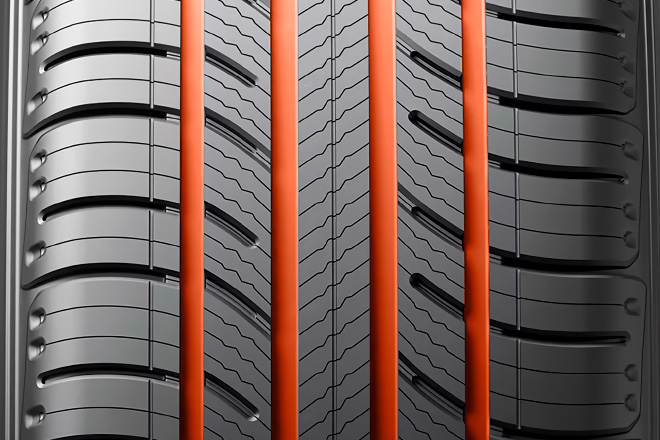

Alt text Illustration of Tire Grooves and Their Placement on Tread Area

Gross Vehicle Weight (GVW)

Gross Vehicle Weight (GVW) is the total weight of the vehicle at a specific point in time, including all cargo, passengers, and fuel. It varies depending on the current load of the vehicle.

Gross Vehicle Weight Rating (GVWR)

Gross Vehicle Weight Rating (GVWR) is the maximum weight limit set by the vehicle's manufacturer, indicating the total weight the vehicle can safely carry. This includes the vehicle's own weight plus cargo, passengers, and fuel.

H
High-Profile Tire

A High-Profile Tire refers to a tire with a higher aspect ratio, typically above 50, indicating a taller sidewall compared to its width. Commonly found on comfort-oriented or off-road vehicles, these tires offer a smoother ride and better shock absorption at the expense of some handling precision. For a comprehensive understanding of the underlying principle of aspect ratio which governs the sidewall height, refer to the entry under "Aspect Ratio".

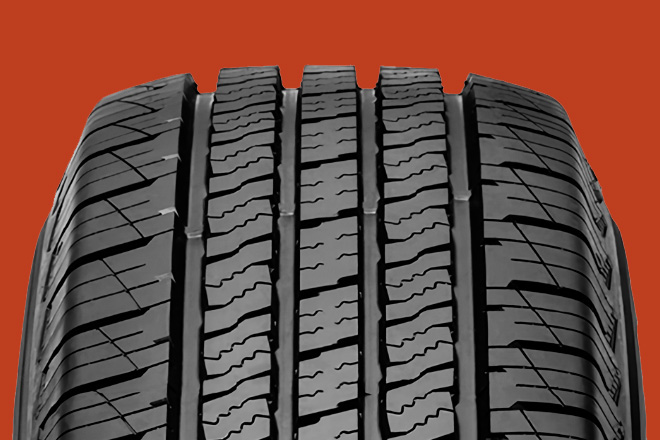

Highway Terrain Tires (H/T)

Highway Terrain (H/T) tires bear the off-road tire marking, signifying their adaptability to not just asphalt roads but also poor quality roads and unpaved surfaces. However, they aren't recommended for intensive off-road use. True to their "highway" designation, they are essentially highway tires. The maximum speed index for H/T tires is 'S', translating to 180 km/h. Their construction ensures a smooth ride, extended tread life, and superior fuel efficiency.

Alt text H/T (Highway Terrain) Tires

Key Features:

  • Suitable for asphalt, poor quality roads, and unpaved surfaces.
  • Not recommended for heavy off-road use.
  • Maximum speed index: S (180 km/h).
  • Provides a quiet and comfortable ride.
Homologation

Tire homologation for brands is the certification process where tires are tested and approved to meet specific standards and regulations. This ensures the tires are suitable for use on specific vehicle makes and models, satisfying the requirements set by car manufacturers and regulatory authorities.

Hub-Centric Rings

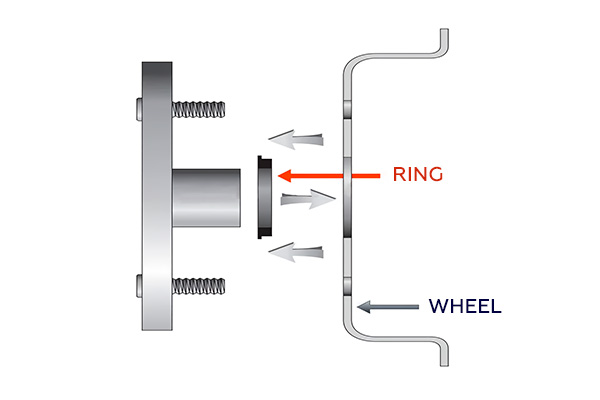

Hub-centric rings are circular spacers used to perfectly center a wheel on a vehicle's hub. Made from either plastic or metal, these rings fill the gap between the wheel's center bore and the hub, ensuring the wheel is precisely aligned and reducing vibration. They are particularly important when the wheel's center bore is larger than the hub size of the vehicle, which is common with aftermarket wheels.

The primary purpose of hub-centric rings is to guarantee that the wheel is perfectly centered on the axle, rather than being centered by the wheel fasteners (lug nuts or bolts). This precise fitment helps in reducing vibration at high speeds and ensures even distribution of weight and stress on the wheel.

Alt text Installing Hub-Centric Rings: A Visual Guide

Note: While not always essential, hub-centric rings are highly recommended for aftermarket wheel installations to enhance driving comfort and wheel performance.

I
ISO Metric (Euro-Metric)

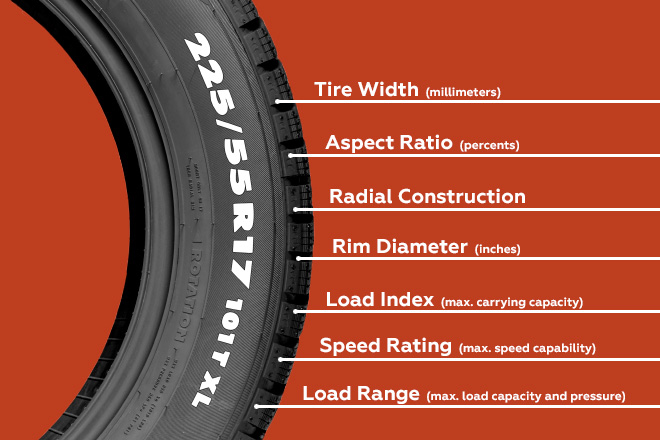

ISO Metric, also known as Euro-Metric, is a tire sizing system adhering to ISO guidelines, representing tire size with three primary metrics: tire width in millimeters, aspect ratio, and rim diameter in inches.

This system is predominantly used in Europe and by European automakers to standardize tire sizes, ensuring proper fit and performance.

Table: Deciphering ISO Metric Sizing

Parameter Example Description
Tire Width 205 The width of the tire in millimeters
Aspect Ratio 55 The height of the sidewall as a percentage of the tire's width

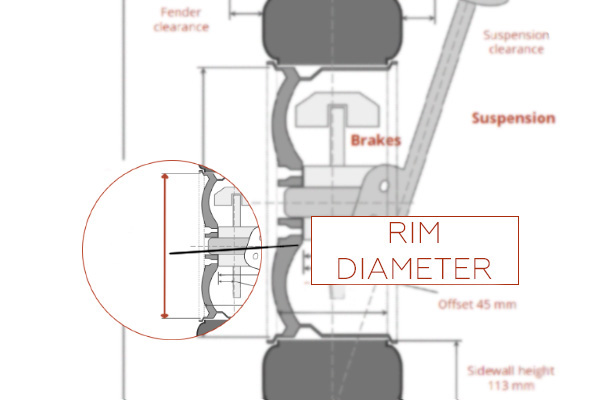

Rim Diameter 16 The diameter of the wheel rim in inches

Note: To explore which cars use tires with the ISO Metric system, you can find a detailed list here. Understanding this system is crucial for selecting the correct tire size for a vehicle, ensuring proper fit, performance, and safety; for a comprehensive comparison, refer to the entry under "Tire Sizing Systems."

L
Lamellas

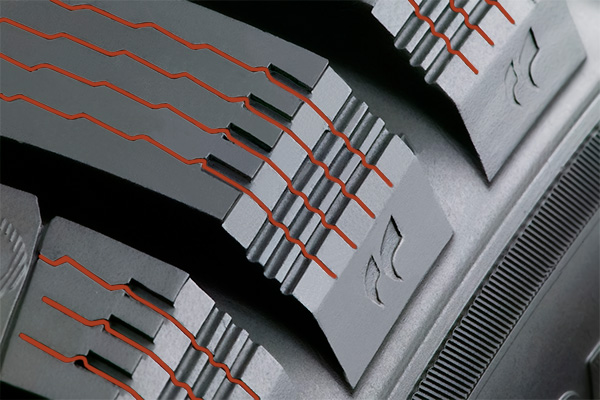

Lamellas are small, fine cuts made within the tread blocks or sipes of a tire, aimed at enhancing traction on slippery surfaces such as snow or ice. By creating additional biting edges and flexible tread components, lamellas aid in gripping the road surface and providing better stability under adverse driving conditions. They are a crucial feature of winter tires, significantly contributing to safer driving in challenging weather conditions.

The design and placement of lamellas can vary based on the tire's intended usage and manufacturer's specifications. Their effectiveness stems from their ability to interlock with the texture of snowy or icy roads. As the tire rolls, lamellas can briefly fill with snow; snow adheres best to snow, which improves traction. Over time, advancements in tire technology have seen the introduction of 3D lamellas, which retain their shape better at higher speeds, ensuring consistent performance while reducing tread wear.

Alt text Close-up of Lamellas on a Tire Tread

Table: Different Types of Lamellae and Their Characteristics

Lamella Type Description Ideal Usage Benefit
Traditional Standard cuts within the tread blocks to increase biting edges on slippery surfaces. General winter driving Improved grip on snowy and icy surfaces
3D Lamellae Multi-dimensional cuts that maintain their shape even at higher speeds. High-speed winter driving Consistent performance, reduced tread wear
Zigzag Lamellae Zigzag-shaped cuts that increase flexibility of the tread. Winter driving in varied conditions Enhanced grip especially during cornering on icy roads

Note: This table provides an overview of the different lamellae used in tire designs. Manufacturers might have proprietary names or variations, but the concepts generally align with these classifications.

Light Truck (LT)

The term "Light Truck" (LT) refers to a category of vehicles that are designed to transport goods or carry a payload rather than primarily carrying passengers. These vehicles include pickup trucks, vans, and SUVs. They are built with a stronger frame, higher ground clearance, and are capable of handling heavier loads compared to Passenger Cars.

The tires designed for light trucks are constructed to support heavier loads, endure rougher usage, and provide stability under heavy payloads, making them distinct from passenger vehicle tires.

Table: Characteristics of Light Truck Vehicles and Tires

Feature Description
Vehicle Type Pickup trucks, vans, SUVs
Frame Strength Stronger frame to support heavier loads
Ground Clearance Higher ground clearance for rough terrains
Tire Load Capacity Higher load capacity to support heavy payloads
Tire Durability Enhanced durability for rough and rugged usage
Tire Size Designation Often denoted by LT (e.g., LT235/75R15)
Load Index

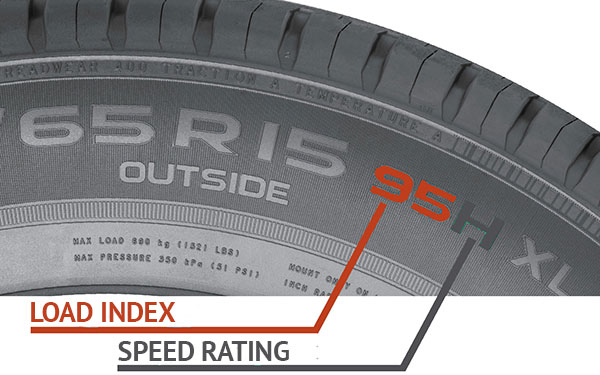

The Load Index is a numerical representation found on the tire sidewall, signifying the maximum load each tire is designed to support when inflated to its recommended cold pressure.

This value is integral to understanding a tire's carrying capacity and ensuring it's used within safe limits. It's typically found alongside the speed index in the tire's service description. For instance, in "225/55 R17 101T," "101" stands for a maximum load of 825 kg/1819 lbs, while "T" indicates a speed limit of 190 km/h or 118 mph. It's essential to note that similar load indexes across different tires don't equate to identical carrying capacities or inflation pressures, especially when comparing P-metric and Euro-metric types.

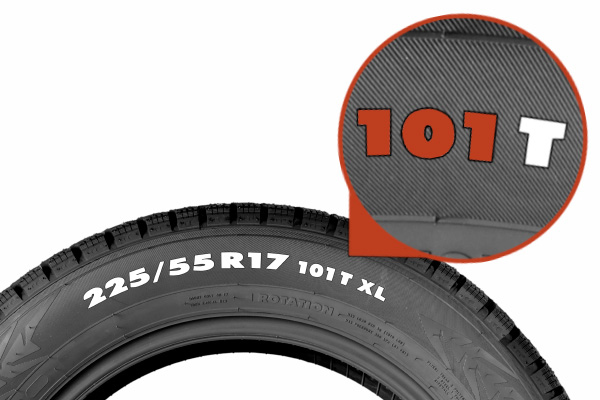

Alt text Tire Load Index Close-Up

Table: Load index chart

Load index Max Weight (kg) Max Weight (lbs)
51 195 430
52 200 441
53 206 454
54 212 467
55 218 481
56 224 494
57 230 507
58 236 520
59 243 536
60 250 551
61 257 567
62 265 584
63 272 600
64 280 617
65 290 639
66 300 661
67 307 677
68 315 694
69 325 717
70 335 739
71 345 761
72 355 783
73 365 805
74 375 827
75 387 853
76 400 882
77 412 908
78 425 937
79 437 963
80 450 992
81 462 1019
82 475 1047
83 487 1074
84 500 1102
85 515 1135
86 530 1168
87 545 1202
88 560 1235
89 580 1279
90 600 1323
91 615 1356
92 630 1389
93 650 1433
94 670 1477
95 690 1521
96 710 1565
97 730 1609
98 750 1653
99 775 1709
100 800 1764
101 825 1819
102 850 1874
103 875 1929
104 900 1984
105 925 2039
106 950 2094
107 975 2150
108 1000 2205
109 1030 2271
110 1060 2337
111 1090 2403
112 1120 2469
113 1150 2535
114 1180 2601
115 1215 2679
116 1250 2756
117 1285 2833
118 1320 2910
119 1360 2998
120 1400 3086
121 1450 3197
122 1500 3307
123 1550 3417
124 1600 3527
125 1650 3638
126 1700 3748
127 1750 3858
128 1800 3968
129 1850 4079
130 1900 4189
131 1950 4299
132 2000 4409
133 2060 4542
134 2120 4674
135 2180 4806
136 2240 4938
137 2300 5071
138 2360 5203
139 2430 5357
140 2500 5512
141 2575 5677
142 2650 5842
143 5725 12621
144 2800 6173
145 2900 6393
146 3000 6614
147 3075 6779
148 3150 6945
149 3250 7165
150 3350 7385
Load Range

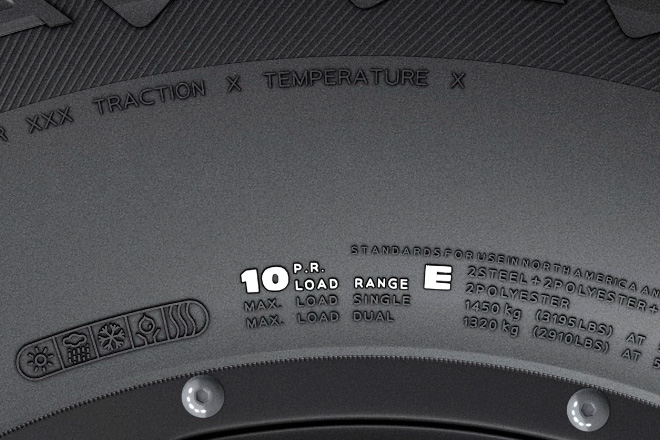

Load Range is an alphabetical code on a tire indicating the maximum load that tire can carry when inflated to its designated pressure. It's crucial for safety, performance, and legality.

Alt text Close-Up View of Tire's Load Range and Ply Rating Information

Table: Tire Load Ranges and Corresponding Load Capacities

Load Range Ply Rating Load Pressure (psi) Typical Application
B 4 35 Passenger Cars
C 6 50 Light Trucks, Vans
D 8 65 Light Trucks, Vans, Trailers
E 10 80 Trucks, Trailers, RVs
F 12 95 Heavy-Duty Trucks
G 14 110 Commercial Trucks
H 16 125 Commercial Trucks
J 18 140 Commercial Trucks
L 20 160 Commercial Trucks
M 22 180 Commercial Trucks

Note: "Load Range" in tires indicates their ability to carry a specified weight at a certain pressure, essential for vehicle safety and performance. The ply rating was historically used to signify the number of cotton layers in the tire's construction, but today it represents the tire's strength and capacity.

Locking Lug Nuts / Bolts (Anti-Theft Lug Nuts / Bolts)

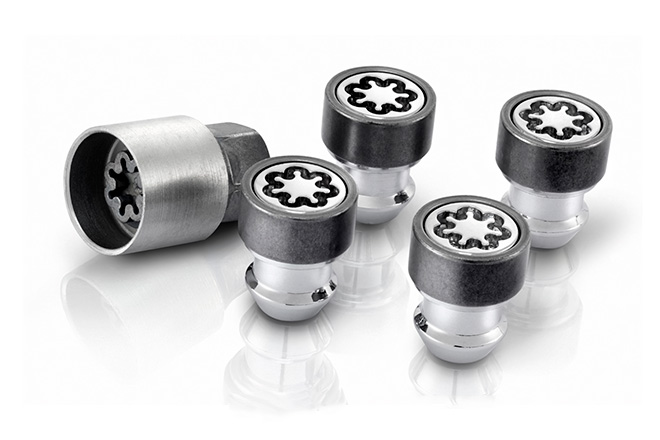

Locking lug nuts, also known as anti-theft lug nuts or bolts, are specialized wheel nuts or bolts designed to prevent the unauthorized removal of a vehicle's wheels. These nuts feature a unique pattern or design on their surface that requires a corresponding key to unlock, providing an added layer of security against wheel theft.

Alt text Locking Lug Nuts & Key

Locking lug nuts / bolts are an invaluable addition to your vehicle's security system, especially in areas prone to theft. They function by using a unique pattern that is nearly impossible to remove without the specific key, making them a robust deterrent to thieves.

Table: Comparative Analysis of Locking Lug Nuts and Bolts

Feature Details
Security Level High due to the need for a unique key for removal.
Installation Requires a special key for installation and removal; typically a simple process.
Compatibility Available in various sizes and styles to fit different vehicles and wheels.
Cost More expensive than standard lug nuts / bolts but provides increased security.
Maintenance Key must be kept safe; if lost, removal can be challenging and may require professional help.
Common Scenarios Ideal for high-risk areas or for wheels that are expensive and highly desirable to thieves.
Low-Profile Tire

A Low-Profile Tire denotes a tire featuring a shorter sidewall or a lower aspect ratio compared to standard tires. These tires, often part of high-performance vehicles, prioritize precise handling, greater stability, and enhanced grip during cornering due to their wider tread and reduced sidewall flex. However, they tend to offer a firmer ride, with less cushioning effect, and may present increased vulnerability to road imperfections or damage from potholes due to decreased sidewall height. For a comprehensive understanding of the underlying principle of aspect ratio which governs the sidewall height, refer to the entry under "Aspect Ratio".

LT-High Flotation

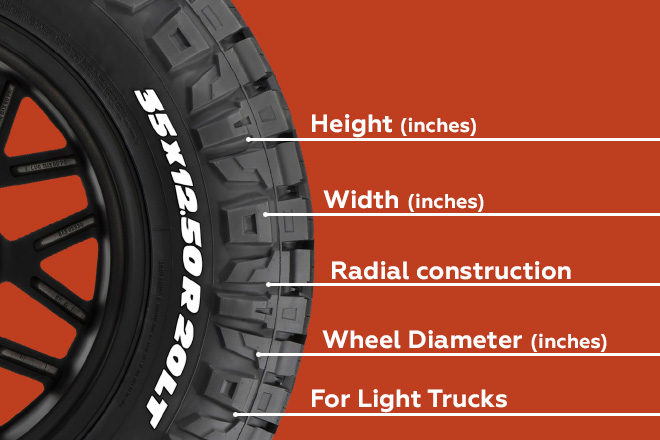

LT-High Flotation is a tire sizing system used predominantly for light truck tires, characterized by a distinct three-part size designation. For example, a tire size of 35x12.50R20LT represents this system. It includes the tire's width in inches, the overall diameter of the tire in inches, and the rim diameter in inches.

Alt text Decoding High Flotation Code

Table: Understanding LT-High Flotation Sizing

Parameter Example Description
Tire Width 35 The width of the tire in inches. Wider tires can distribute weight more evenly, improving stability.
Tire Diameter 12.50 The overall diameter of the tire in inches. Larger diameters can increase ground clearance and improve ride quality.
Rim Diameter 20 The diameter of the wheel rim in inches. This size must match the rim for proper fitting and performance.

Note: This sizing system is often found on tires designed for off-road or all-terrain use on light trucks, providing a balance of on-road drivability and off-road capability. To explore which cars use tires with the LT-High Flotation system, you can find a detailed list here; for an inclusive comparison, refer to "Tire Sizing Systems."

LT-Metric

The LT-Metric tire sizing system, used primarily for light trucks and SUVs, expresses the tire size using three primary metrics: the tire's width in millimeters, its aspect-ratio (the height of the sidewall as a percentage of the tire's width), and the diameter of the wheel rim in inches.

Alt text Decoding Metric Code

For instance, a tire size LT225/55R17 represents this system, where 'LT' signifies that the tire is designed for Light Trucks, 225 mm is the tire width, 55 is the aspect ratio, and 17 inches is the rim diameter. This system offers a standardized approach to describe tire sizes, ensuring they are appropriately matched to vehicles, especially those designed to carry heavier loads. The correct sizing is crucial for maintaining the vehicle's handling characteristics and safety.

Table: Deciphering LT-Metric Sizing

Parameter Example Description
Light Truck LT Indicates the tire is designed for Light Trucks, highlighting its suitability for vehicles carrying heavier loads.
Tire Width 225 The width of the tire in millimeters. Wider tires can provide better stability and handling, particularly under load.
Aspect Ratio 55 The height of the sidewall as a percentage of the tire's width. A higher aspect ratio indicates a taller sidewall, which can improve ride comfort and absorb road irregularities more effectively.
Rim Diameter 17 The diameter of the wheel rim in inches. It is crucial to match the rim diameter with the tire to ensure proper fit and optimal vehicle performance.

Note: The actual numbers in the tire size (e.g., width, aspect ratio, rim diameter) can vary significantly based on the tire's specific design and purpose. The "Load Range" is often included in LT-Metric sizes to indicate the tire's load-carrying capacity and recommended inflation pressure. It's represented by a letter (e.g., E) following the rim diameter. To explore which cars use tires with the LT-Metric system, you can find a detailed list here; for a detailed juxtaposition, see the entry under "Tire Sizing Systems."

LT-Numeric

The LT-Numeric tire sizing system is specifically used for light truck tires. It expresses the tire size with a numerical representation of its width in inches, followed by the rim diameter in inches. For example, a tire size like 12.00R20 LT falls under this system, indicating a tire width of 12.00 inches and a rim diameter of 20 inches. Unlike the LT-Metric and LT-High Flotation systems, LT-Numeric uses a simpler two-part size designation.

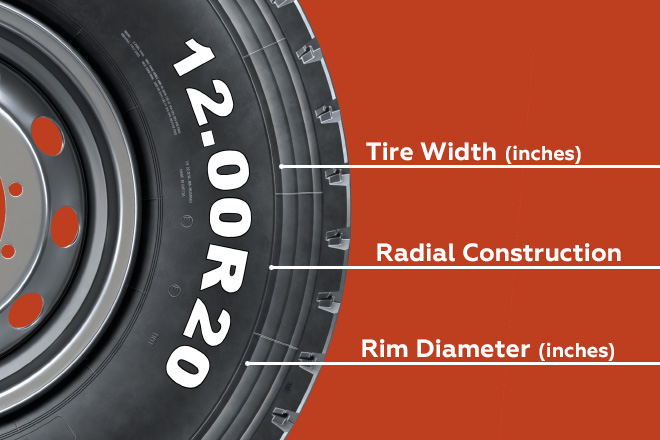

Alt text Decoding Numeric Code

Table: Understanding LT-Numeric Sizing

Parameter Example Description
Tire Width 12.00 The width of the tire in inches. This dimension affects the tire's footprint, load distribution, and stability.
Rim Diameter 20 The diameter of the wheel rim in inches. Accurate rim diameter is essential for ensuring a proper fit between the tire and the wheel, impacting the vehicle's handling and safety.

Note: Understanding this system is essential for ensuring the correct tire fit for light trucks designed for heavy-duty use, thereby ensuring safety and performance. To explore which cars use tires with the LT-Numeric system, you can find a detailed list here; to understand how this sizing system compares with others, refer to the "Tire Sizing Systems" term.

M
Max Inflation Pressure

"Max Inflation Pressure" refers to the maximum air pressure a tire can be safely inflated to while supporting its maximum load capacity. This value is not the recommended tire pressure but rather the upper limit established by the manufacturer to prevent overinflation, and it's typically indicated on the tire's sidewall in pounds per square inch (psi) or kilopascals (kPa).

Minimum Tread Depth

Minimum Tread Depth refers to the smallest amount of tread that is considered safe on a tire. This measurement is crucial for safety, as insufficient tread depth can lead to decreased traction and increased likelihood of hydroplaning in wet conditions. It's typically measured in 32nds of an inch or millimeters.

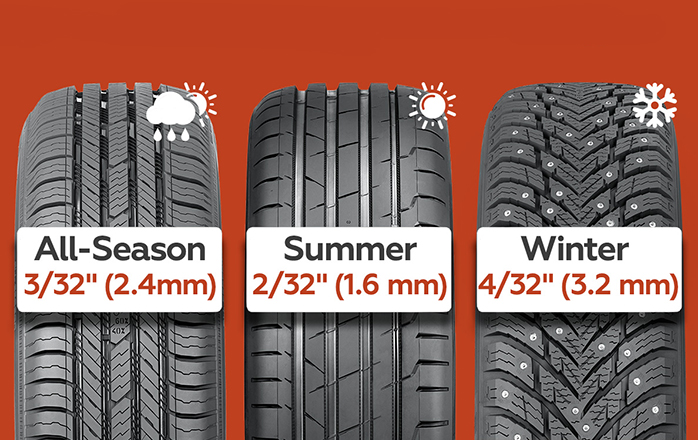

Alt text Minimum Tread Depth for Summer, Winter, and All-Season Tires

Table: Minimum Summer Tire Tread Depth Requirements by Region

Region Minimum Tread Depth Additional Notes
Europe 1.6 mm (2/32 inches) Standard across EU countries
North America 1.6 mm (2/32 inches) Varies by state in the USA; Canadian provinces may vary
Asia Varies by country Japan: 1.6 mm (2/32 inches); China: 2 mm (0.079 inches); India: 1 mm (approx. 0.039 inches); Others vary
Australia 1.5 mm (0.059 inches) Uniform across the country
South America Varies by country Brazil and Argentina: 1.6 mm (2/32 inches); Others vary
Africa Varies by country South Africa: 1 mm (0.039 inches); Others vary widely
Middle East Varies by country UAE and Saudi Arabia: 1.6 mm (2/32 inches); Others vary

Note: Adhering to the minimum tread depth standards is not only a legal requirement but also a significant factor in ensuring vehicle safety. It's advisable to replace tires before they reach the minimum tread depth to maintain optimal traction and handling performance.

Mud Terrain Tires (M/T)

Mud Terrain (M/T) tires, specialized for muddy environments, feature an aggressive tread pattern for traction across various off-road conditions but perform poorly on highways, particularly in wet or icy conditions. They wear quicker and produce more noise during highway use.

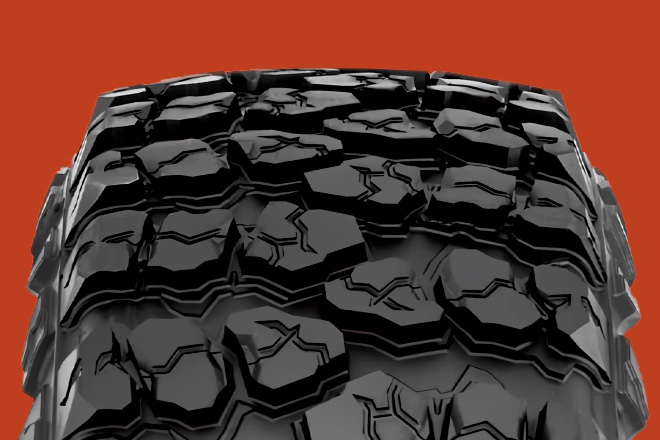

Alt text M/T (Mud Terrain) Off-Road Tires

Key Features:

  • Specialized for mud and diverse off-road terrains.
  • Aggressive tread design.
  • Not suited for highway use; poor wet or icy performance.
  • Quicker wear and higher noise levels on highways.
  • Low-speed indexes, max "R" (up to 160 km/h).
N
Negative Camber

"Negative Camber" refers to the inward tilt of the top of a vehicle's tires towards the centerline. This alignment enhances cornering performance and is prevalent in sports cars and motorsport applications. However, it may accelerate tire wear on the inner edge during straight travels. For a broader understanding of this alignment characteristic, refer to the entry under "Camber".

Negative Offset

"Negative Offset" occurs when the wheel hub mounting surface is located inside the wheel's centerline, resulting in the wheel and tire protruding outwards from the vehicle's body. While it broadens the vehicle's stance for improved stability, especially in racing or off-road applications, it may increase stress on suspension components; for a comprehensive explanation, refer to the entry under "Offset".

Negative Scrub Radius

Negative Scrub Radius happens when the steering axis intersects the ground inward from the center of the tire's contact patch, potentially enhancing vehicle control during braking. For an in-depth understanding of Scrub Radius and its effects, refer to the entry under "Scrub Radius."

O
Offset

"Offset" is the distance between the wheel's central line and the mounting surface on the hub. Depending on this measurement, the offset is classified as positive (mounting surface outside the wheel's centerline), negative (inside the centerline), or zero (at the centerline). The correct offset is crucial for proper vehicle handling, tire wear, and clearance between the wheel and the vehicle's bodywork.

The offset of a wheel is fundamental in determining the position of the tire and wheel assembly in relation to the vehicle's suspension, brakes, and fender wells. The correct offset ensures the vehicle handles correctly, prevents premature tire wear, and maintains proper clearance between the wheel and the vehicle's bodywork.

Alt text Image illustrating the differences between Zero, Positive, and Negative Offset

Table: Types of Wheel Offset

Offset Type Description
Positive Offset The mounting surface is located outside the wheel's centerline. Common in most front-wheel-drive vehicles and provides a car with a more stable, smoother ride.
Negative Offset The mounting surface is located inside the wheel's centerline. Often seen in high-performance or off-road vehicles; it gives a vehicle a more aggressive stance and wider tread.
Zero Offset The mounting surface is aligned directly with the wheel's centerline. Less common, typically found in older vehicles or those seeking a very specific stance.

Note: Understanding offset is also vital for accurately using our Tire Calculator for optimal wheel and tire setups.

Original Equipment (OE)

Original Equipment (OE) refers to the standard equipment or parts, including tires, that a vehicle is fitted with at the time of purchase from the manufacturer. OE tires are specifically designed to complement the performance characteristics of the vehicle they are fitted to.

Table: Common OE Designations

Brand OE Designations Description
Audi AM8, AM9, AMP, AMS, AMX OE tires designated for various Audi models
Bentley B, B1, BC, BL OE tires designated for various Bentley models
BMW Star marked OE tires for BMW models
Mercedes-Benz MO, MO1 MO designates Mercedes Original, MO1 for newer models
Porsche N0, N1, N2, N3, N4 Indicates the approval revision from Porsche
Ferrari K1, K2 Designations for various Ferrari models
Jaguar J Designated OE tires for Jaguar models
Land Rover LR Designated OE tires for Land Rover models

Note: OE designations are crucial for identifying the tire specifications recommended by the vehicle manufacturer. When replacing tires, it's advisable to choose tires with the same OE designation to maintain the vehicle's performance and safety characteristics.

Overall Diameter

Overall Diameter refers to the total diameter of a wheel when equipped with a tire. It is the measurement from one end of the tire to the other, passing through the center, and is usually specified in inches. This dimension is crucial as it impacts several aspects of vehicle performance including speedometer accuracy, ride comfort, ground clearance, and overall aesthetics.

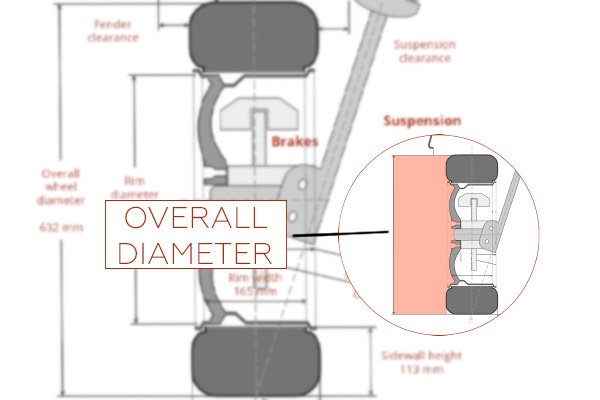

Alt text Illustrating Overall Diameter Measurement Using Our Tire Calculator

Accurate measurement of the Overall Diameter is also critical for effectively using our Tire Calculator to explore different tire and wheel setup options and to ensure proper fitment and performance.

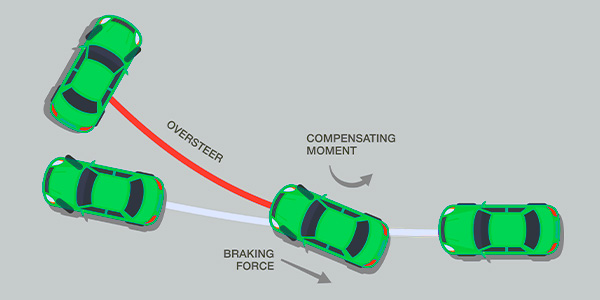

Oversteer

Oversteer is a handling characteristic of a vehicle where the rear tires lose grip before the front tires, causing the rear end of the vehicle to skid or slide outwards during a turn. This phenomenon often occurs in rear-wheel-drive vehicles and can be influenced by factors such as vehicle speed, steering input, and road conditions.

Alt text Visualization of Oversteer Dynamics in Vehicle Handling

Managing oversteer requires counter-steering and careful throttle modulation, whereas understeer is typically corrected by reducing speed and steering input. Both handling characteristics present unique challenges and are important considerations in vehicle dynamics and driver response.

P
Passenger (P)

The term "Passenger" refers to a category of vehicles designed primarily for the transportation of passengers rather than goods. This category includes sedans, hatchbacks, and coupes. These vehicles are built with comfort, fuel efficiency, and driveability in mind, contrasting with the utility-focused design of Light Trucks.

Table: Characteristics of Passenger Vehicles and Tires

Feature Description
Vehicle Type Sedans, hatchbacks, coupes
Ride Comfort Engineered for a smoother, quieter ride
Fuel Efficiency Designed for better fuel economy
Tire Size Designation Often denoted by a P (e.g., P215/65R15)
Tire Ride Qualities Smooth, quiet, and comfortable ride
Handling & Performance Balanced for everyday driving conditions
PCD (Pitch Circle Diameter)

PCD, or Pitch Circle Diameter, also known as Bolt Circle Diameter or Bolt Pattern, refers to the diameter of a circle that passes through the center of the lug holes on a wheel or the bolts on a car wheel hub. It is a crucial measurement used to determine the fitment of wheels on a vehicle. PCD is usually expressed in millimeters or inches, and is denoted as (number of bolts)x(diameter), for example, 5x112 or 4x100.

Understanding the correct PCD for your vehicle ensures that the wheels are a proper fit, which is vital for safety and performance.

Alt text Measuring PCD (Pitch Circle Diameter)

Table: Common PCD Measurements

Number of Bolts Common PCD Measurements
4 4x100, 4x114.3
5 5x112, 5x120
6 6x139.7

Note: It's essential to match the PCD of the wheels to the PCD of the vehicle to ensure proper fitment. Incorrect PCD can lead to unsafe driving conditions and damage to the vehicle.

Ply Layers

"Tire Carcass Layer(s)," also known as "Ply" or "Plies," are the rubber-coated fabric layers fortified with cords that constitute the internal skeleton of a tire. These layers, which extend from one bead to the other, provide structural integrity and form the backbone between the inner liner and the outer tread, crucial for the tire's performance and durability.

Positive Camber

"Positive Camber" refers to the outward tilt of the top of a vehicle's tires away from the centerline. While it minimizes edge wear during straight travels, it's less common in modern vehicles due to reduced cornering efficacy. However, it finds application in certain motorsport or off-road scenarios for desired handling dynamics. For a broader understanding of this alignment characteristic, refer to the entry under "Camber".

Positive Offset

"Positive Offset" occurs when the wheel's mounting surface is positioned on the street side, or front of the wheel's centerline. This setup pulls the wheel and tire closer to the vehicle chassis, commonly seen in front-wheel-drive cars and offers benefits such as improved vehicle stability and enhanced steering precision; for more information, refer to the entry under "Offset".

Positive Scrub Radius

Positive Scrub Radius is present when the steering axis intersects the ground outward from the center of the tire's contact patch, which may increase steering effort. For a detailed exploration of Scrub Radius and its impacts, refer to the entry under "Scrub Radius."

Power

In automotive terms, "Power" refers to the amount of energy output produced by a vehicle's engine, usually measured in horsepower (hp), kilowatts (kW), or metric horsepower (PS). It indicates the engine's capability to perform work and is a key indicator of a vehicle's performance potential. For example, an engine output of 237 hp | 177 kW | 241 PS means the engine can produce 237 horsepower, 177 kilowatts, or 241 metric horsepower.

Table: Power Measurement Equivalents

Measurement Equivalent Description
Horsepower (hp) 1 hp ≈ 0.98632 PS Commonly used in the US to measure engine power
Kilowatts (kW) 1 kW ≈ 1.34102 hp Standard unit of power in the International System
Metric Horsepower (PS) 1 PS ≈ 0.98632 hp Common in Europe and many other parts of the world

Note: Power ratings are crucial for comparing different vehicles, and ensuring that a vehicle meets the performance requirements for a particular use or driving condition.

PSI (Pounds Per Square Inch)

PSI stands for "Pounds per Square Inch" and represents a unit of pressure. In the context of tires, it refers to the amount of air pressure inside the tire, indicating the level of inflation. Proper tire pressure, measured in PSI, is crucial for vehicle safety, fuel efficiency, and optimal tire lifespan.

R
Radial Tires

Tires constructed with the cord plies arranged at a 90-degree angle to the direction of travel, or radially from the tire's center. This design improves road contact, leading to better fuel efficiency, longevity, and ride comfort.

Radial tires revolutionized the tire industry when they were introduced, largely replacing the older bias-ply construction. Their construction allows the sidewall and the tread to function independently, providing superior comfort and heat dispersion.

Alt text Radial Tire Construction

Table: Key Features of Radial Tires

Feature Radial Tires Description
Construction Cord plies arranged radially from the tire's center.
Durability Typically longer lifespan compared to bias-ply tires.
Fuel Efficiency Improved due to reduced rolling resistance.
Ride Comfort Superior shock absorption and road contact.
Heat Dispersion Efficient heat dispersion reduces blowout risks.
Performance Consistent and reliable across a variety of terrains and conditions.
Rear-Wheel Drive (RWD)

A drivetrain system where the engine's power is directed solely to the vehicle's rear wheels. This configuration is favored for its performance-oriented attributes and is often found in sports cars and traditional trucks.

RWD systems tend to provide a balanced weight distribution, resulting in improved handling and stability, especially during acceleration. While it delivers a dynamic driving experience, it may pose challenges in slippery conditions without appropriate tires or additional weight in the rear.

Table: Characteristics and Descriptions of Rear-Wheel Drive (RWD)

Characteristic Description for RWD
Drivetrain System Channels power exclusively to the vehicle's rear wheels.
Ideal Usage Performance driving, towing, and carrying heavy loads.
Handling and Performance Offers enhanced handling and acceleration dynamics.
Traction Can be challenging in wet or icy conditions without preparation.
Cost and Design Generally more expensive and complex than FWD.
Weight Distribution Provides a more balanced weight distribution.
Ribs

Ribs refer to the raised bands running circumferentially around a tire's tread. These linear tread elements are separated by grooves and are crucial in a tire's contact with the road, contributing to grip, stability, and water displacement to prevent hydroplaning. They play a significant role in the tire's handling characteristics, noise levels, and wear patterns.

The arrangement and intricacy of ribs can vary based on a tire's intended use. For instance, high-performance tires may feature solid central ribs to enhance responsiveness and high-speed stability. On the other hand, tires designed for comfort might have intricately designed ribs to minimize vibration and noise. Furthermore, the interaction of ribs with other tread features, like sipes, can influence braking performance and cornering capabilities.

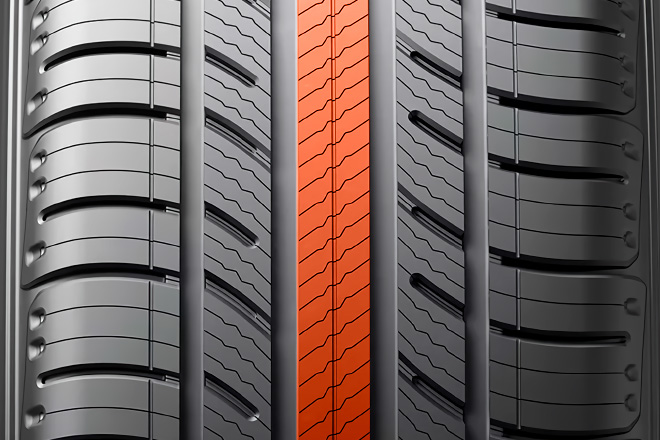

Alt text Close-up Illustration of the Singular Rib on a Tire's Tread

Rim

The outer edge of a wheel that holds the tire. It forms the outer circular design of the wheel on which the inside edge of the tire is mounted on vehicles.

Rim Contour

Rim Contour refers to the shape or profile of the section of the rim where the tire bead seats. This contour is critical as it ensures a proper fit and seal between the tire and the rim, which is essential for maintaining tire pressure and ensuring safe and efficient vehicle operation.

Table: Common Rim Contours and Applications

Rim Contour Description Common Applications
J Standard contour for many passenger vehicles Sedans, hatchbacks, and some SUVs
JJ Enhanced bead fit, used in higher performance Sports cars, high-performance vehicles, 4x4 vehicles
JK, B Usually found in older or vintage vehicles Classic cars, vintage vehicles
K Specific profile used in certain luxury vehicles Older Jaguar models
P Found in certain older vehicle models Some very old VW Beetles
A, D Used in various cycles, motorcycles, and industrial vehicles Bikes, motorcycles, light/heavy trucks, forklifts
E, F, G, H Common in commercial vehicles with semi-drop centre rims Heavy trucks, commercial vehicles
S, T, V, W Typically used in commercial vehicles with flat base rims Utility vehicles, commercial vehicles
Rim Diameter

"Rim Diameter" denotes the measurement across the wheel's rim from one edge to the other, passing through the center, not including the tire. Typically expressed in inches, it's a fundamental dimension ensuring the correct tire fitment on the rim.

Alt text Illustrating Rim Diameter Measurement Using Our Tire Calculator

Accurate Rim Diameter is crucial for tire replacement or upgrade, as mismatched rim and tire diameters can lead to improper fit, compromising safety and performance. Understanding this term is essential for making informed decisions on tire and wheel setups, and for accurately using our Tire Calculator to explore different fitment options.

Rim Width

Rim Width denotes the distance between the inner edges of the rim flanges, where the tire sits on the wheel. This measurement, typically expressed in inches or millimeters, is pivotal as it determines the width of the tire that can be safely and effectively mounted on the wheel.

Accurate knowledge of the Rim Width is crucial for matching tire width to wheel dimensions, ensuring optimal vehicle performance, safety, and handling characteristics. When considering tire replacements or upgrades, understanding the Rim Width is vital for making informed decisions and for accurately using our Tire Calculator to ensure proper tire and wheel compatibility.

Alt text Demonstrating Rim Width Evaluation Through Our Tire Calculator

Rolling Radius

The "Rolling Radius" refers to the distance from the center of the wheel (where the axle is located) to the road. This measurement can change depending on the tire's inflation level and the load the tire is supporting. It's a crucial factor in understanding vehicle dynamics as it can affect speed calculations, overall vehicle height, and handling characteristics.

Rolling Resistance

"Rolling Resistance" refers to the effort required to keep a tire moving on a surface. It's a force that opposes the motion when a tire rolls on the ground, impacting fuel efficiency and vehicle performance. Factors influencing rolling resistance include tire design, material composition, and inflation levels, among others.

Table: Factors Influencing Rolling Resistance

Factor Description
Tire Design The tread pattern, internal structure, and overall geometry of a tire can affect how it interacts with the road, thereby influencing its rolling resistance.
Material Composition The rubber compounds used in a tire’s construction, especially the tread and sidewall, play a significant role in determining rolling resistance. Softer materials tend to increase rolling resistance while harder materials may reduce it.
Inflation Levels Properly inflated tires maintain optimal contact with the road, reducing rolling resistance. Under-inflated tires create more friction and drag, increasing rolling resistance.
Road Surface Smoother surfaces decrease rolling resistance, while rough or uneven surfaces increase it due to higher friction levels.
Load Heavier vehicles or those carrying heavy loads exert more pressure on the tires, potentially increasing rolling resistance.
Speed Higher speeds can increase a tire’s deformation, leading to higher rolling resistance. However, the effect varies based on tire design and material.
RunFlat Technology

RunFlat Technology involves tires that maintain vehicle mobility for a short distance during a puncture or significant pressure loss, thanks to their reinforced sidewalls. These tires, recognized by the RSC (RunFlat System Component) symbol on their sidewalls, require a vehicle equipped with a Tire Pressure Control System (TPCS). They allow travel for approximately 80 km at a reduced maximum speed of 80 km/h, enhancing safety and convenience by negating the immediate need for a spare tire.

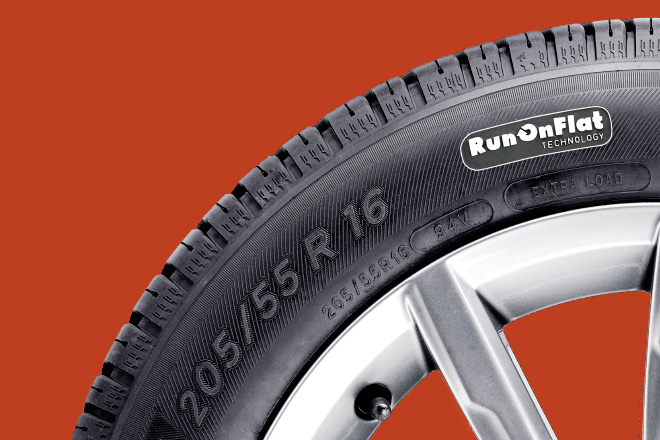

Alt text Run-Flat Technology Indicator

Table: RunFlat Technology Abbreviations by Brand

Brand Abbreviation Full Form
Bridgestone RFT, MOE Run-Flat Tire, Mercedes-Benz Original Extended Tires
Continental SSR Self-Supporting Runflat Tire
Dunlop DSST, ROF Dunlop Self-Supporting Technology, Run-On-Flat
Firestone RFT Run-Flat Tire
Goodyear EMT, ROF Extended Mobility Technology, Run-On-Flat
Kumho XRP Extended Run-Flat Performance
Michelin ZP Zero Pressure
Yokohama Run-Flat, ZPS Zero Pressure System
Hankook HRS Hankook Runflat System
S

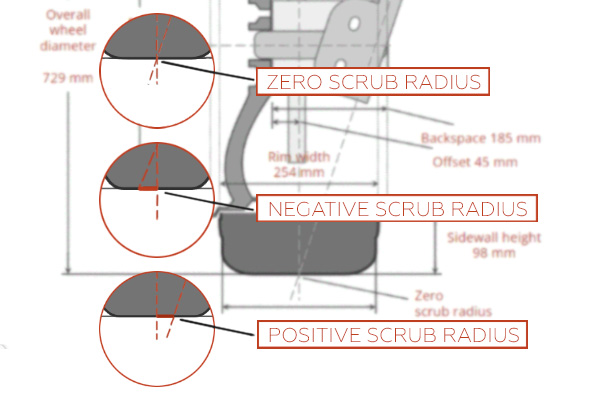

Scrub Radius

Scrub Radius is the distance between the center of the tire's contact patch and the point where the steering axis intersects the ground when viewed from the front or rear of the vehicle. It comes in three types: Zero, Positive, and Negative Scrub Radius, each with distinct implications on vehicle handling and performance.

The correct Scrub Radius is crucial for optimal steering, vehicle control during braking, and overall handling performance. It's an essential consideration for vehicle alignment, especially for individuals looking to modify their suspension setups for specific handling characteristics.

Alt text Image illustrating the differences between Zero, Positive, and Negative Scrub Radius when using our tire calculator

Table: Implications of Scrub Radius

Scrub Radius Type Description Steering Effort Vehicle Control during Braking Handling Performance
Zero Scrub Radius The steering axis intersects the ground at the center of the tire's contact patch. Balanced Enhanced Optimal
Positive Scrub Radius The steering axis intersects the ground outward from the center of the tire's contact patch. Increased Potentially Reduced May vary
Negative Scrub Radius The steering axis intersects the ground inward from the center of the tire's contact patch. Potentially Reduced Potentially Enhanced May vary
Section Width

Section Width denotes the linear distance between the outermost edges of a tire's sidewalls, measured when the tire is fully inflated but unladen. Excluding any raised letters or designs on the sidewall, this measurement is pivotal as it affects the tire's road contact, handling characteristics, and the overall width of the vehicle.

A thorough understanding of Section Width is essential when considering tire replacements or upgrades. It helps in choosing the right tire size to ensure proper fitment, desired handling characteristics, and adequate clearance.

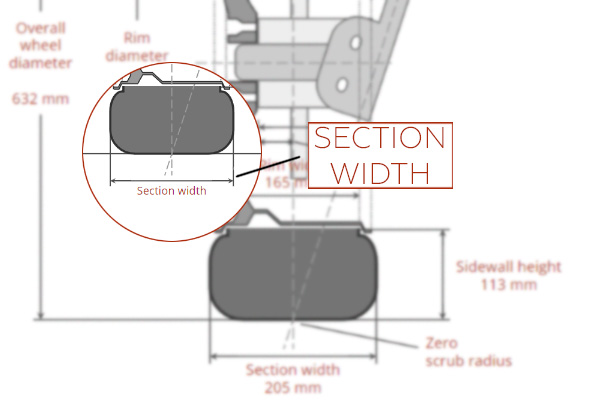

Alt text Illustrating Section Width Measurement Using Our Tire Calculator

Additionally, accurate Section Width information is necessary for effectively using our Tire Calculator to explore different tire and wheel setup options, ensuring they align well with your vehicle's specifications for optimal performance and aesthetic appeal.

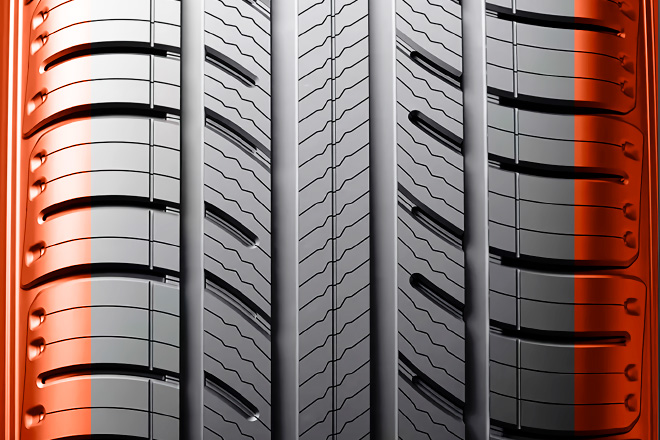

Shoulder

The "Tire Shoulder" is the area where a tire's sidewall transitions into the tread, marking the outer edges of the tread pattern. This part is critical as it endures significant stress during cornering, potentially affecting handling and wear patterns.

The design of the tire shoulder can greatly influence the tire's heat dissipation. A rounded shoulder, for instance, allows for smoother transitions during turns and may promote even tread wear. In contrast, a sharper, more defined shoulder can provide additional stability but may wear quicker on the edges. The tire shoulder's construction and compound are also factored in when manufacturers aim to strike a balance between durability and performance, especially in scenarios that involve sharp cornering or high-speed maneuvers.

Alt text Close-up of the Tire Shoulder

Sidewall

The sidewall is the section of the tire extending from the tread down to the bead. It provides lateral stability, protects the carcass, and absorbs road shocks. Information about the tire, including specifications and ratings, is imprinted here. Some models feature reinforced sidewalls for enhanced durability against cuts and punctures.

Alt text Sidewall: Essential Component of Tire Construction

The sidewall not only serves a functional role but also plays a part in the tire's aesthetics, often showcasing brand logos and designs. This section is crafted from rubber compounds that are resistant to the elements and wear, ensuring a balance between flexibility and durability. Adjustments to sidewall height, known as the aspect ratio, can influence a tire's performance characteristics, affecting ride comfort and handling. A thicker sidewall typically offers more cushioning, while a thinner one can enhance steering responsiveness.

Sidewall Height

Sidewall Height refers to the vertical distance from the edge of the rim to the outer tread of the tire. It's a critical dimension that impacts ride comfort, handling, and the overall appearance of the vehicle. This measurement is usually derived from the tire's aspect ratio and its rim diameter.

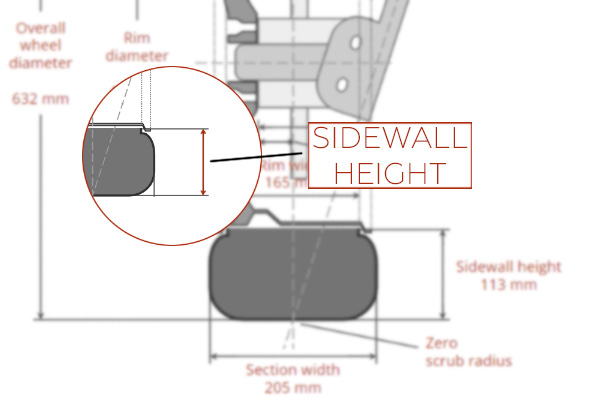

Alt text Illustrating Sidewall Height Measurement Using Our Tire Calculator

Accurate knowledge of the Sidewall Height is also necessary for effectively using our Tire Calculator to explore different tire and wheel setup options and to ensure proper fitment and performance.

Snow Chains

Snow Chains are devices made of metal links arranged to form a mesh that encases a tire's tread, providing enhanced traction on snowy and icy roads. By offering a better grip, they improve stability and handling in challenging winter conditions. Typically used as temporary traction aids, snow chains should be removed on clear roads to prevent excessive wear and ensure ride comfort.

Speed Rating

The Speed Rating is an alphabetical code on a tire, indicating the maximum speed a tire can safely maintain under specified load conditions.

This code, ranging from A to Z, helps ensure that a tire is not run at higher speeds than its designated rating. For example, a tire with a V rating has a maximum speed of 240 km/h (149 mph). It's crucial for safety and tire performance to choose a speed rating suitable for your vehicle and driving conditions. The speed rating is found at the end of the tire's size code on the sidewall and is also typically available in the vehicle's owner manual or the driver's side doorjamb.

Alt text How to Find the Speed Rating on a Tire?

Table: Tire speed rating table for passenger cars

Speed Symbol Speed (kmph) Speed (mph)
E 70 43
F 80 50
G 90 56
J 100 62
K 110 68
L 120 75
M 130 81
N 140 87
P 150 94
Q 160 100
R 170 106
S 180 112
T 190 118
U 200 124
H 210 130
V 240 149
W (ZR*) 270 168
Y (ZR*) 300 186
(Y) (ZR**) > 300 > 186

"ZR" Designation: Tires capable of speeds over 240 km/h (149 mph) may include "ZR" in their size designation. For those with speeds over 300 km/h (186 mph), "ZR" is mandatory. Examples: P275/40ZR17 93W (max 270 km/h or 168 mph), P275/40ZR17 93Y (max 300 km/h or 186 mph). Always consult the tire manufacturer for maximum speeds if they're not indicated.

Sport Utility Vehicle (SUV)

An SUV, or Sport Utility Vehicle, is a type of vehicle designed with robust off-road capabilities, higher ground clearance, and often available with all-wheel-drive or four-wheel-drive systems. They offer a higher seating position, providing a commanding view of the road, along with versatile interior space for passengers and cargo.

Staggered Wheel Configuration

"Staggered Wheel Configuration" refers to a vehicle setup where the rear wheels and tires are larger or wider than those at the front. This arrangement, often found on high-performance and sports cars, aids in achieving greater rear-wheel traction and a dynamic aesthetic.

Alt text Staggered Wheel and Tire Setup Example

The broader rear tires in a staggered setup enhance cornering stability by offering a larger contact patch. This increased surface area at the back helps distribute power efficiently, especially beneficial for powerful rear-wheel-drive models. However, this arrangement might lead to quicker tire wear and potentially limit tire rotation options, as tires of different sizes can't be moved from front to rear.

Steel Wheels

Steel wheels, or pressed steel wheels, are constructed using an iron-carbon alloy, known for its robustness and high endurance. Although they weigh more compared to their aluminum counterparts, steel wheels are renowned for their resilience in harsh conditions, ease of repairability, and affordability. However, they lack the diverse aesthetic options present in other wheel types. This is primarily due to their manufacturing process, which involves stamping via a press and subsequent welding, leading to a more utilitarian appearance.

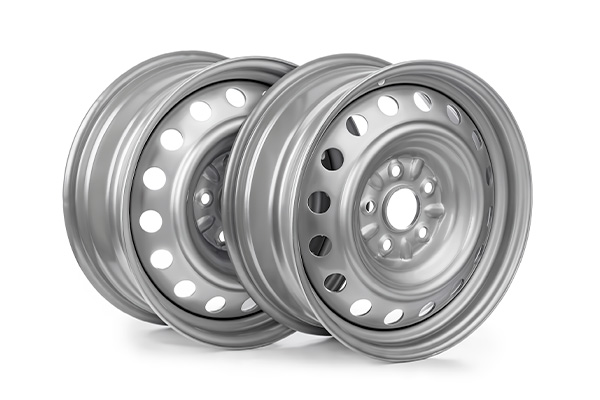

Alt text Close-up of Two Steel Wheels

Table: Characteristics and Details of Steel Wheels

Feature Details
Material Composition Primarily composed of iron and carbon, known for strength and durability.
Weight Tend to be heavier than counterparts made of aluminum or other alloys, adding stability.
Durability Exceptionally resilient, ideal for withstanding harsh conditions and handling heavy loads.
Maintenance Their malleable nature makes them easier to repair and refinish, providing long-term value.
Cost Generally more cost-effective compared to aluminum and alloy wheels.
Aesthetic Variety Manufacturing processes often limit intricate designs; mostly available in simpler styles.
Common Uses Perfect for utility vehicles, winter wheels, or for drivers valuing durability over style.
Stud Holes

Stud holes are pre-molded cavities in a tire's tread, specifically engineered to accommodate tire studs. These small metallic or composite protrusions, when inserted into the stud holes, enhance a tire's grip on icy or snow-packed roads by providing additional biting edges. Tires with stud holes are typically termed "studdable" and offer drivers an optional traction advantage in severe winter conditions, though their use is regulated in some areas due to increased road wear.

Studded Tires

Studded tires feature hard metal or plastic rivet-like devices inserted into the tire's tread. These tire studs, specifically engineered for icy conditions, protrude slightly from the tire's surface to dig into ice, offering enhanced traction. While their grip on ice and hard-packed snow is unparalleled, their use is restricted in certain regions and seasons due to the road wear they cause.

Studless Tires

Studless Tires are designed to provide enhanced traction on snow and ice without the use of embedded metal studs. They employ advanced rubber compounds that remain flexible in cold temperatures, and tread designs that grip snow and ice effectively. Studless tires aim to offer a safer winter driving experience while eliminating the road damage that can be caused by metal studs.

Summer Tires

Summer tires, specifically engineered for warmer temperatures, offer a superior combination of grip and precision handling due to their unique composition and tread patterns. Made with advanced rubber compounds that stay firm in high heat, they excel on both wet and dry surfaces. However, they're unsuitable for cold conditions, generally performing poorly and wearing quickly in temperatures below 40°F (4.4°C) due to their lack of flexibility and grip in the cold.

Suspension

The suspension is a vehicle's system of springs, shock absorbers, struts, and linkages that connects the body to the wheels, allowing relative motion between the two. It plays a critical role in managing the handling and ride quality of the vehicle.

A well-tuned suspension system ensures a harmonious balance between ride comfort and handling performance, which is essential for both everyday drivability and optimized vehicle dynamics. Understanding the suspension system and its components is crucial for making informed decisions on tire and wheel setups, thus aiding in utilizing our Tire Calculator effectively for accurate results.

Table: Key Components and Functions of Suspension System

Component Description Function
Springs Components that support the vehicle's weight and absorb and reduce shock impulses. Absorb Road Impacts, Support Vehicle Weight
Shock Absorbers Devices that dampen the oscillations of the springs by converting kinetic energy to heat. Control Spring Oscillations
Struts Integrated assemblies that combine the functions of shock absorbers and springs in a single unit. Support Vehicle Weight, Dampen Oscillations
Control Arms Linkages that connect the wheels to the vehicle frame, allowing for up-and-down movement. Maintain Wheel Alignment, Allow Suspension Movement
Sway Bars Stiff rods that connect the suspension of the wheel on the left side to the suspension of the wheel on the right side. Reduce Body Roll, Improve Cornering Stability
Bushings Rubber or polyurethane cushions that isolate the suspension components from the chassis, reducing noise and vibration. Reduce Noise, Vibration, Ensure Alignment

Note: The suspension system's design and tuning significantly impact a vehicle's handling characteristics, ride comfort, and overall safety. It's a complex assembly where each component must function in harmony to deliver the desired ride and handling outcomes.

Suspension Clearance

Suspension Clearance refers to the space available between the suspension components and other parts of the vehicle, including the wheels, tires, and body. It's essential to prevent contact between these parts during vehicle operation, which could lead to damage or adversely affect handling and ride comfort.

Adequate Suspension Clearance is crucial, especially when considering changes in tire size, wheel size, or suspension modifications. It ensures that the new setup will function without interference, providing safe and optimal performance. Understanding this term is vital for accurately using our Tire Calculator to determine the best setup for your vehicle.

Alt text The image illustrates Suspension Clearance with the aid of our tire calculator for reference

Table: Factors Affecting Suspension Clearance

Factor Description Implication on Clearance
Tire Size The dimensions of the tire, including its diameter, width, and aspect ratio. Larger tires may reduce clearance.
Wheel Size and Offset The dimensions and mounting position of the wheels. Incorrect size/offset may cause interference.
Suspension Modifications Changes to the suspension geometry or componentry, such as lifting or lowering the vehicle. Altered suspension can change clearance.
Vehicle Load The weight the vehicle is carrying, including passengers and cargo. Increased load can reduce clearance.
Aftermarket Components Installation of aftermarket parts like larger brake calipers or different control arms. Some components may require additional clearance.

Note: It's essential to check Suspension Clearance after any modification to the vehicle's wheels, tires, or suspension to ensure there's no interference that could lead to component damage or unsafe driving conditions.

Symmetrical Tires

Tires characterized by a tread pattern that is uniform across the entire tire's surface. This design ensures even wear, promoting a longer tire lifespan and consistent performance throughout its usage.

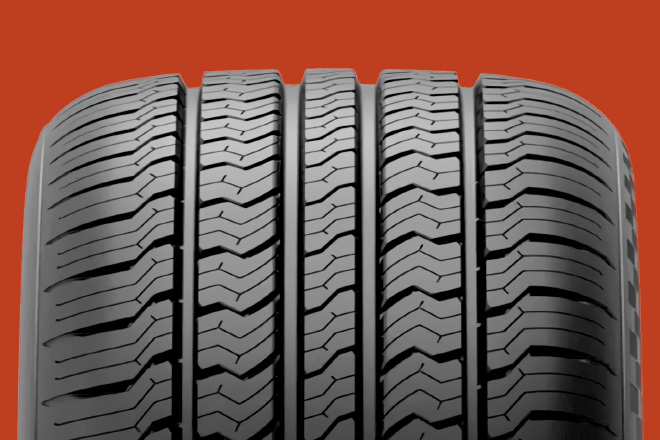

Alt text Close-up View of Symmetrical Tire Tread Pattern

Symmetrical tires are often quieter and more comfortable on the road due to their consistent tread pattern. They can be rotated in various patterns, further enhancing their lifespan by promoting even wear on all four tires.

T
Thread Size (ISO and UN-series)

Thread size is a crucial specification in wheel bolts or lug nuts, indicating the diameter and pitch of the threads. In the ISO standard, it is represented as "Nominal diameter (mm) x pitch (mm)," for example, M12 x 1.25. In the UN-series, it's denoted as "Thread size (inches) - thread pitch," like 9/16" - 18 UNF, where UNF stands for Unified National Fine Thread. Adhering to the correct thread size standard, either ISO or UN-series, when selecting wheel bolts or lug nuts is essential for maintaining wheel attachment integrity and overall vehicle safety.

Tire

A tire is a vehicle component that provides the wheel's contact with the road. It performs several key functions: ensures traction with the surface, supports the vehicle's weight, cushions impacts from road irregularities, and aids in steering direction. Tires are crucial for ensuring safety, efficiency, and good dynamic characteristics of a vehicle. They vary in design and composition, allowing adaptation to different driving conditions—whether it's wet, dry, or off-road. Properly selected tires enhance a vehicle's handling, braking efficiency, and fuel economy.

Tire Balancing

Tire Balancing involves adjusting the distribution of weight around a vehicle's wheel and tire assembly to ensure it rotates evenly at varying speeds. This procedure prevents vibrations, reduces tire wear, and eases stress on the vehicle's suspension. To achieve this equilibrium, technicians affix precise counterweights to the wheel's rim that counteract imbalances, promoting a comfortable and safe driving experience.

Tire Designations

Tire designations are alphanumeric codes imprinted on the tire sidewall, providing crucial information regarding the tire's size, type, performance characteristics, and approved usage.

Tire designations encompass a wide variety of information, assisting drivers in selecting the right tire for their vehicles and driving conditions. These designations are grouped into categories like size, type, performance, construction, installation instructions, and intended use conditions.

Table: Tire Designations

Designation Category Description
BLK, BSW Sidewall Style Indicate a tire with a black sidewall, a common style for many tires.
LT, LRO Vehicle Type Designations used for light truck vehicles and low platform trailers, respectively, highlighting their suitability for heavier loads or specific vehicle types.
REINFORCED, RF Load Capacity Indicates tires that are specially strengthened to carry heavier loads, often found on commercial vehicles or off-road vehicles.
RRBL, VSB, ORBL, OWL Sidewall Lettering Different styles of sidewall lettering, each offering a unique aesthetic appearance.
ZR Speed Rating A speed rating that signifies the tire's suitability for speeds over 240 km/h.
SSR, MFS, RF, RUNONFLAT, EMT Run-Flat Technologies Various technologies and features related to run-flat tires or tires with additional protections or capabilities.
NO, N1, N2, N3, J, MO Vehicle Specific Specific designations for tires designed for Porsche, Jaguar, and Mercedes vehicles, respectively.
TUBE TYPE, TUBELESS Tube Necessity Indicates whether the tire requires a tube or not.
ALL STEEL, REGROOVABLE, RETREAD, RADIAL Construction Information about the tire's construction, whether it's retreadable, and the type of tire structure.

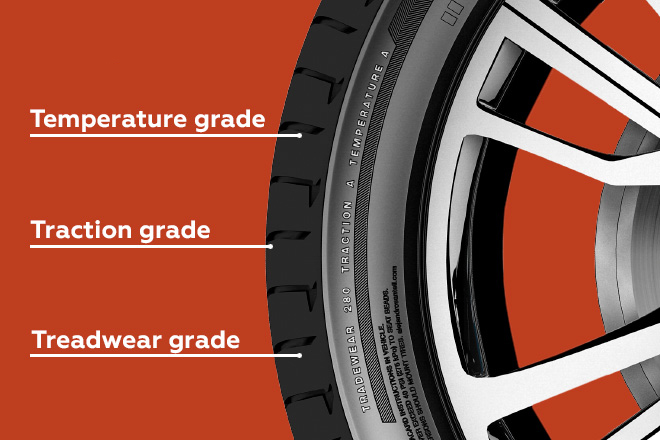

TREADWEAR, TRACTION, TEMPERATURE Performance Ratings Ratings that provide insight into the tire's expected wear, traction performance, and heat resistance.
TOUS TERRAIN, M+S, Winter, Rain, All Season Usage Conditions Designations indicating the tire's intended use conditions.
INSIDE, OUTSIDE, RIGHT, LEFT, ROTATION Installation Instructions Instructions for the correct installation of the tire, especially for those with specific tread patterns or rotational directions.
PLIES, MAX LOAD, MAX PRESSURE Load and Pressure Information on the tire's composition, maximum load capacity, and maximum inflation pressure.
DOT, MADE IN, Stud Certification and Origin Certification, origin, and specific feature indicators (like suitability for studding for winter use).

Note: Understanding these designations is crucial for selecting the right tire for your vehicle and ensuring safe and efficient tire performance. Each designation provides a piece of the puzzle in understanding the complex realm of tire specifications and compatibilities.

Tire Installation (Mounting)

"Tire Installation" is the precise process of fitting a tire onto a wheel. This procedure, recommended to be performed by skilled professionals, involves several critical stages: securing the tire to the rim, inflating it to the proper pressure, and ensuring its balance for optimal performance and longevity. Proper installation is crucial to maintain the tire's structural integrity and the vehicle's overall safety and handling characteristics.

Tire Pressure Gauge

A compact, user-friendly tool designed to accurately measure the air pressure inside a tire, ensuring it aligns with the vehicle manufacturer's recommended levels. Available in digital, dial, or stick forms, this device is essential for maintaining proper tire inflation, thereby promoting optimal vehicle performance, fuel efficiency, and passenger safety while reducing the risk of premature tire wear. Regular use of a tire pressure gauge is recommended, especially in response to temperature changes, to prevent driving on overinflated or underinflated tires.

Tire Revolutions Per Mile (RPM)

"Tire Revolutions Per Mile" refers to the number of times a tire rotates over the course of one mile, considering it's properly inflated and under the rated load. This figure, also known as "tire RPM," is crucial for understanding vehicle speed, calculating gear ratios, and selecting appropriate tires for a vehicle to ensure accuracy in speedometers and odometers.

Tire Rotation

"Tire Rotation" involves repositioning tires on a vehicle from one position to another, such as front to rear or side to side, to ensure even tread wear and extend tire life. Regular rotation is crucial as it results in a uniform wear for all tires on a vehicle and improves overall performance.

By periodically changing the position of the tires, the stresses and wear patterns on them are altered, which helps in achieving a balanced wear across all four tires. Different drivetrain configurations, be it front-wheel drive, rear-wheel drive, all-wheel drive, or four-wheel drive, may have specific recommended rotation patterns to optimize wear and performance. Following these guidelines can also enhance fuel efficiency, improve handling, and maintain optimal traction in various driving conditions.

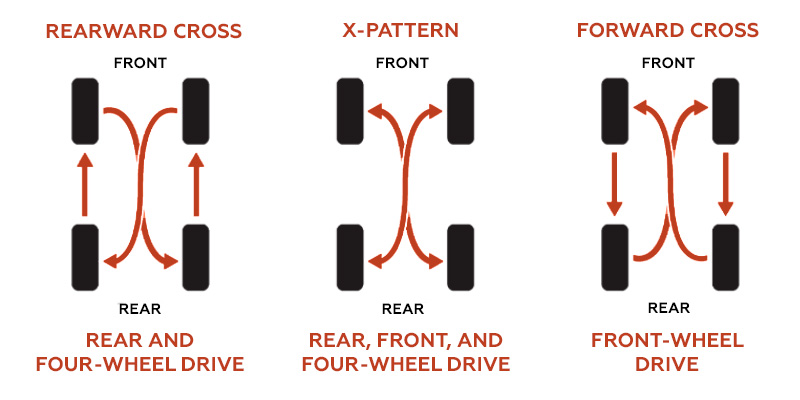

Alt text Drivetrain-Specific Tire Rotation Patterns

Tire Size (Dimensions and Specifications)

A standardized series of alphanumeric indicators imprinted on the tire sidewall, which provides detailed information about the tire's precise specifications, including its width, aspect ratio (the height of the sidewall as a percentage of the width), and the diameter of the wheel that it fits. For instance, in the tire size '175/65R14', '175' denotes the tire’s width in millimeters; '65' represents the aspect ratio, indicating that the height is 65% of the tire's width; 'R' signifies a radial construction; and '14' indicates the wheel diameter in inches designed for the tire. Understanding tire size is crucial for ensuring the correct tire compatibility with a vehicle, affecting various aspects such as handling, load capacity, and overall vehicle performance.

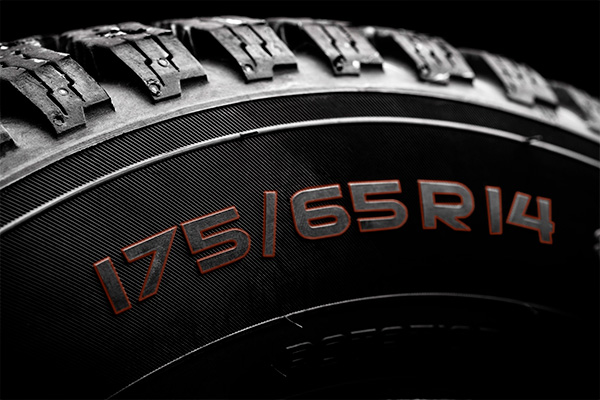

Alt text Close-up of Sidewall Indicating Tire Size

Table: Understanding Tire Size Indicators (ISO Metric)

Indicator Description Example Meaning in Example
Width The cross-section width of the tire, measured in millimeters. 175 The tire's width is 175 millimeters.
Aspect Ratio The height of the tire's sidewall as a percentage of its width. 65 The sidewall height is 65% of the tire's width.
Construction The internal construction of the tire (e.g., "R" for Radial). R The tire features radial construction.
Wheel Diameter The diameter (in inches) of the wheel that the tire is designed to fit. 14 The tire is made to fit a wheel with a 14-inch diameter.
Tire Size Calculator

A tire size calculator is a digital tool that provides users with the ability to compare tire sizes, visualize changes in dimensions, and understand potential impacts on vehicle performance. It's used when upgrading or changing tires to ensure compatibility with the vehicle, proper clearance, and accurate speedometer readings. This calculator typically requires input such as the stock tire size and the new tire size, offering a side-by-side comparison of parameters like width, height, sidewall thickness, and diameter. Utilize the Tire Size Calculator on our site to effortlessly compare different tire sizes, visualize dimensional changes, and gauge the potential impacts on your vehicle's performance.

Tire Sizing Systems

Tire sizing systems are standardized methods of representing tire dimensions. The four primary systems include ISO Metric, LT-Metric, LT-High Flotation, and LT-Numeric. Each system has a unique way of depicting tire size, primarily focusing on different attributes like tire width, aspect-ratio, and diameter to cater to different vehicle types and user needs.

Table: Comparison of Tire Sizing Systems

Sizing System Example Size Interpretation
ISO Metric 205/55R16 205: width in mm, 55: aspect ratio, R16: rim diameter in inches
LT-Metric LT235/75R15 LT: Light Truck, 235: width in mm, 75: aspect ratio, R15: rim diameter in inches
LT-High Flotation 31x10.50R15 31: tire diameter in inches, 10.50: tire width in inches, R15: rim diameter in inches
LT-Numeric 7.50R16LT 7.50: tire width in inches, R16: rim diameter in inches, LT: Light Truck

Note: The ISO Metric system is more universal and is used across a wide range of vehicle types including passenger cars, whereas the LT-Metric, LT-High Flotation, and LT-Numeric systems are more specific to light trucks and off-road vehicles. Each of these systems provides crucial information regarding tire size, which affects vehicle performance, safety, and compatibility. Understanding these systems is essential for accurate tire selection and to ensure they meet the vehicle's specifications.

Toe

Toe refers to the direction the tires are pointed relative to the centerline of the vehicle when viewed from above. It indicates whether the fronts of the tires are closer together (toe-in) or further apart (toe-out) than the rears.

Alt text Visual Representation of Toe-In and Toe-Out Alignment

Toe alignment is crucial for ensuring straight-line stability and reducing tire wear. An incorrect toe setting can lead to a "feathering" wear pattern on the tires and can cause the vehicle to pull to one side. Adjustments to toe are typically made in small increments, as even minor deviations can significantly affect tire wear.

TPMS (Tire Pressure Monitoring System)

An electronic system designed to monitor the air pressure inside pneumatic tires on various types of vehicles. TPMS reports real-time tire-pressure information to the driver of the vehicle, either via a gauge, a pictogram display, or a simple low-pressure warning light. This system is crucial for maintaining proper tire pressure, ensuring vehicle safety, and providing alerts when the pressure drops below the recommended level.

The TPMS aids in preempting potential tire-related issues by providing early warnings. Proper tire pressure is linked with reduced fuel consumption, increased tire longevity, and improved vehicle handling. Some advanced versions also account for tire temperature, ensuring consistent tire performance and durability. By facilitating timely interventions, the TPMS helps maintain optimal driving conditions and reduce the risk of accidents.

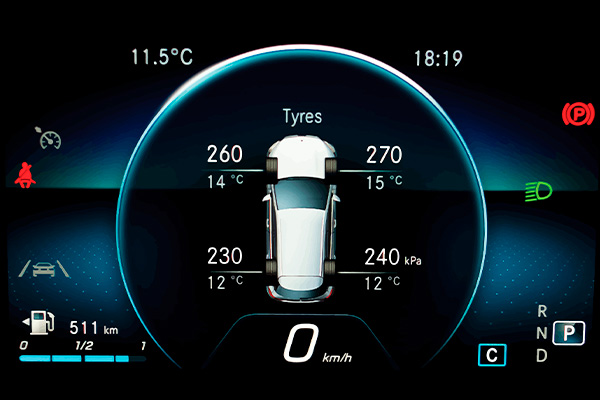

Alt text TPMS Dashboard Display with Temperature Measurement Close-up

Traction

Traction is the extent to which a tire can grip or adhere to the road surface to prevent sliding, especially during accelerating, braking, and cornering. It is influenced by various factors such as road surface characteristics, driving speed, weight distribution, tire pressure, temperature, and tire properties.

Table: Factors Affecting Tire Traction

Factor Description
Road Surface Texture and material of the road surface impact traction
Driving Speed Higher speeds can reduce traction and grip
Weight Distribution Uneven weight distribution can alter traction levels
Tire Pressure Improper tire pressure can lessen traction
Temperature Extreme temperatures affect tire elasticity and traction
Tire Properties Tread design and rubber compound influence traction

Note: A comprehension of traction and its influencing factors is fundamental for drivers and automotive professionals to make informed decisions regarding tire maintenance and driving practices, thereby contributing to road safety and vehicle longevity.

Tread

The patterned outer surface of a tire that makes direct contact with the road. The tread provides traction, channels away water to prevent hydroplaning, and its design and compound can affect fuel efficiency, noise levels, and overall tire performance.

Table: Types of Tire Tread Patterns

Tread Pattern Description
Symmetrical Features a uniform design across the tire's surface. Offers quiet ride and typically has a longer tread life.
Asymmetrical Combines multiple tread patterns for optimal dry and wet performance. Different inboard and outboard pattern designs.
Directional Has a 'V-shaped' tread pattern optimized for water evacuation and high-speed capabilities. Must be mounted correctly for proper rotation.
Asymmetrical & Directional Tread This type is less common in everyday use and is often found in specialized or high-performance applications.

Note: This table outlines the common tread patterns used in tire manufacturing, each designed to meet specific driving requirements and conditions. The tread pattern plays a crucial role in a vehicle's traction, handling, and ability to safely navigate various road conditions. Selecting the appropriate tread is essential for optimizing a tire's performance and the vehicle's overall safety.

Tread Block

Tread blocks are the raised rubber segments on a tire that directly contact the road surface. These segments are strategically designed and placed to optimize traction, stability, and performance across various road conditions.

Alt text Close-Up View of Tread Blocks

Tread blocks are integral components of a tire's tread pattern. They come in various shapes and sizes, tailored to specific driving conditions—whether that's highway driving, off-roading, or navigating wet and snowy conditions. Cross slots, which are channels molded into the tread blocks, further enhance a tire's performance by providing additional water evacuation pathways, reducing the risk of hydroplaning.

Tread Depth

Tread Depth is the vertical measurement indicating the depth of a tire's main grooves, quantified in 32nds of an inch. This metric is vital for assessing tire health, with new car tires typically featuring 10/32" or 11/32" (more for truck and winter variants). A depth of 2/32" is generally the legal wear limit, signaling the need for tire replacement for safety and optimal performance.

Table: Tire Tread Depth Guide

Tread Depth (in 32nds of an inch) Condition Description
11/32" - 10/32" New Typical depth for new car tires. Truck and winter tires may be deeper. Optimal performance in various conditions.
9/32" - 6/32" Slightly Worn Still safe, with good performance. Monitor for wear and be aware that adverse weather performance may begin to diminish.
5/32" - 4/32" Moderately Worn Performance in adverse conditions (rain, snow) noticeably reduced. Consider preparing for replacement.
3/32" Significantly Worn Safety hazard, especially in wet, snowy, or icy conditions. Reduced traction and increased stopping distances. Should be replaced soon.
2/32" Worn Out (Legally) Tires are considered legally worn out in most jurisdictions. Significant safety hazard. Immediate replacement recommended.

Note: For high-performance vehicles, performance tires, or tires subjected to extreme driving conditions, more frequent monitoring and potentially earlier replacement may be necessary to maintain optimal handling and safety. Always refer to the tire manufacturer's recommendations and consider both the age of the tire and the driving conditions in your particular area when making decisions about tire replacement. Additionally, more information about Minimum Tread Depth and Minimal Tread Depth Standards by Region can be found here.

Tread Depth Test (Coin Test)

The "Tread Depth Test," commonly known as the "Coin Test," is a universal method for assessing tire tread wear. By inserting a coin into the tire tread, you can quickly determine if the depth is sufficient for safe driving. The specific coin used and the exact technique can vary by country, but the principle remains consistent: insufficient tread depth revealed during the test indicates the need for tire replacement to ensure vehicle safety.

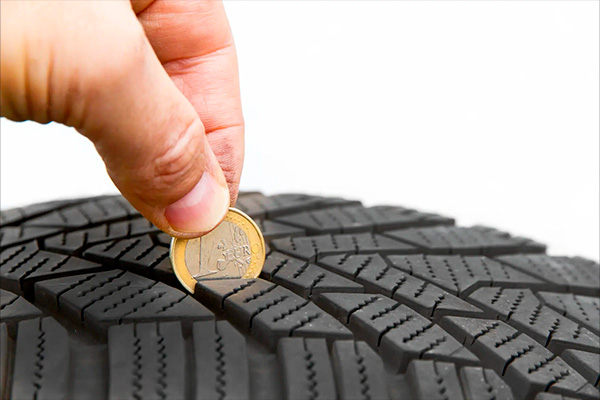

Alt text Coin Test for Tread Depth Measurement

Tread Life

Tread Life refers to the estimated lifespan of a tire, expressed in miles, before the tread is considered too worn to ensure safe driving conditions. It's influenced by various factors including driving habits, road conditions, climate, and tire maintenance practices. Manufacturers may provide a tread life warranty, but actual mileage may vary.

Tread Wear Indicator/Tread Wear Bar

Tread Wear Indicators, or Tread Wear Bars, are small raised features located in the tire's main longitudinal tread grooves. These bars become flush with the tire's tread when it wears down to a depth of 2/32", signaling the minimum legal limit for safe operation and the urgent need for replacement. They serve as a critical safety feature, helping identify when a tire is no longer safe to use due to reduced grip and increased stopping distances.

The Tread Wear Indicators provide a convenient visual cue to vehicle owners without the need for specialized equipment or measurements. While the tires continue to wear, these indicators gradually become more noticeable. It's essential to monitor them, especially if the vehicle frequently traverses rough terrains, is heavily loaded, or is driven at high speeds — conditions that can expedite tread wear. Not only can worn-out treads compromise safety, but driving on them can also negatively impact fuel efficiency and handling dynamics. You can learn more about the safety implications and regulations regarding tread height under the term 'Minimal Tread Depth'.

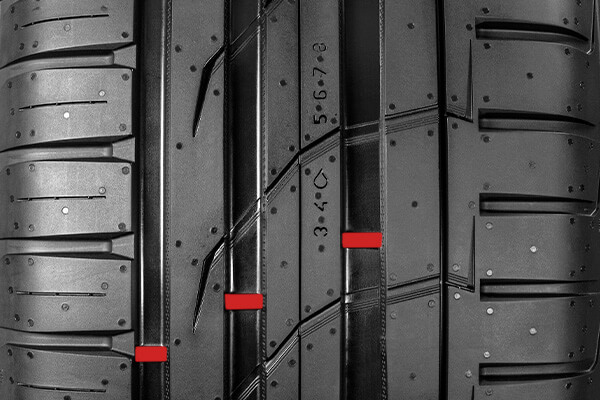

Alt text Close-up of Tread Wear Indicators on a Tire

Treadwear

The reduction in depth of the tire's tread pattern due to use over time, affecting its performance and safety. Regular maintenance and correct inflation can prolong tread life. It's crucial to monitor tread wear because excessive wear can lead to reduced traction, especially in adverse weather conditions, compromising vehicle safety.

U
Ultra-High Performance Tires (UHP Tires)

Ultra-High Performance (UHP) Tires are designed to provide superior handling, traction, and responsiveness at higher speeds. They feature a Low-Profile design with wider treads and are constructed with specialized rubber compounds to ensure better grip and sharp steering response on both wet and dry roads.

The enhanced performance characteristics of UHP tires make them suitable for sports cars, performance sedans, and other vehicles where high-speed stability and precise handling are desired.

Table: Comparison Between UHP Tires and Standard Tires

Feature UHP Tires Standard Tires
Speed Rating Higher (e.g., V, W, Y, Z) Lower (e.g., S, T, H)
Handling Precise, Responsive Standard
Traction Superior Standard
Ride Comfort Firmer Smoother
Tread Wear Faster Slower
Wet Grip Better Standard
Noise Level Higher Lower
Cost Higher Lower

Note: While UHP tires deliver improved performance and handling, they may come at the cost of ride comfort, noise levels, and tread life, making it essential to consider the trade-offs based on individual preferences and driving conditions.

Understeer

Understeer occurs when a vehicle turns less sharply than intended or the front wheels lose grip before the rear ones, causing the car to continue straight ahead despite the wheels being turned. This handling characteristic, often experienced in front-wheel-drive vehicles, results from having a larger slip angle at the front tires compared to the rear. It's generally considered safer for the average driver than oversteer, as the vehicle remains more stable and easier to control.

Understeer can be influenced by driving conditions, weight distribution, and suspension geometry. The phenomenon is especially noticeable when entering a corner at high speeds or on slippery surfaces. Adjustments in suspension settings or tire compounds can mitigate its effects.

Alt text Visualization of Understeer Dynamics in Vehicle Handling

UTQG (Uniform Tire Quality Grade)

UTQG stands for Uniform Tire Quality Grade, a rating system originated by the U.S. Department of Transportation. It's designed to provide consumers with valuable information about tire treadwear, traction performance, and temperature resistance. This system allows for standardized comparison concerning the durability and safety of tires, though it's essential to note that these tests are conducted by the manufacturers themselves and therefore might not reflect absolute performance under all conditions.

Alt text UTQG Ratings: Traction, Temperature, and Treadwear

Table: UTQG (Uniform Tire Quality Grade)

Component Description
Treadwear Numerical rating for expected tread life compared to a reference tire; higher numbers denote longer life.
Traction Assesses tire's stopping ability on wet roads; ratings from "AA" (highest) to "C" (lowest).
Temperature Rates tire's heat resistance and ability to dissipate heat; ratings from "A" (highest) to "C" (lowest).

Note: The UTQG ratings are relative and not suitable for a precise cross-comparison between different tire manufacturers. They are more effective for comparing tires from the same brand.

V
Vehicle Placard

The Vehicle Placard is a label affixed to a vehicle, typically located on the driver's side door jamb, that details vital information regarding the vehicle's tires and load specifications. It includes the manufacturer's recommended tire size, optimal tire pressure for front and rear tires, vehicle load limit, and sometimes the tire speed rating.

This placard is instrumental for drivers, providing guidance for maintaining proper tire pressure, understanding vehicle capacity, and ensuring safe and efficient vehicle operation. Adhering to the specifications on the vehicle placard helps in optimizing vehicle performance, fuel efficiency, and the lifespan of tires.

Alt text Vehicle Placard Display Detail

W
Wheel Fasteners

Wheel fasteners are mechanical components used to securely attach a wheel to a vehicle's hub. They come in two main types: lug nuts and bolts. Wheel fasteners are crucial for vehicle safety, ensuring that the wheel remains firmly attached to the vehicle under all driving conditions.

Wheel fasteners must be tightened to a specific torque specification to ensure proper attachment and prevent damage to the wheel or hub. Over time, they can become loose due to vibrations and should be regularly checked and retightened if necessary. The material and design of wheel fasteners vary, with some featuring anti-theft designs to prevent unauthorized removal.

Wheel Spacers

Wheel spacers are devices that fit over a vehicle's holding bracket to create extra clearance between the wheel and the wheel hub assembly. They are used to widen the vehicle's track for better stability and handling, accommodate larger tires or brakes, or to achieve a desired wheel stance.

By extending the wheel hub, spacers can significantly alter a vehicle's handling characteristics, improving grip, and cornering stability.

Alt text Close-up of a Wheel Spacer

Table: Advantages and Disadvantages of Wheel Spacers

Aspect Advantages Disadvantages
Handling Improved stability and cornering Potential alignment issues
Aesthetics Desired wheel stance -
Brake Clearance Accommodates larger brakes -
Tire Clearance Allows for larger tires Increased stress on wheel bearings
Installation Relatively simple Must ensure proper fitment

Note: While wheel spacers can offer several benefits, it's crucial to ensure they are the correct thickness and are properly installed to maintain the vehicle's safety and performance. It's advisable to consult with a professional before deciding on and installing wheel spacers.

Wheel Tightening Torque

Wheel Tightening Torque refers to the specified torque value set by the manufacturer for tightening wheel bolts or nuts, using a torque tool. Expressed in Newton metres (Nm) or foot-pounds (ft-lbs), it measures the tightness of lug nuts or bolts, ensuring a secure attachment of the wheel to the vehicle. Adhering to the recommended wheel tightening torque is crucial for maintaining the structural integrity of the wheel assembly and preventing wheel detachment incidents.

Wheel Well

The wheel well is the designated space within a vehicle's body designed to accommodate the wheel and tire assembly, allowing for their rotation and suspension movement. Understanding the dimensions of the wheel well is pivotal when utilizing a Tire Calculator to ensure accurate fitment and avoid interference with the vehicle's body or suspension components.

Wheel Wells Clearance

Wheel Wells Clearance refers to the space between the tire and the wheel well at various points, ensuring there's no contact between them during vehicle operation. Accurate clearance is crucial for preventing tire rubbing, which can lead to tire damage and adversely affect vehicle handling.

Assessing the Wheel Wells Clearance is a fundamental step when considering a change in tire size or suspension modifications. It helps in determining the maximum tire size that can be accommodated without interference, and is an essential parameter to input accurately when using a Tire Calculator for custom setups.

Alt text Illustrating Wheel Wells Clearance Measurement Using Our Tire Calculator

Table: Factors Affecting Wheel Wells Clearance

Factor Description Implication on Clearance
Tire Size The dimensions of the tire, including its diameter, width, and aspect ratio. Larger tires may reduce clearance.
Wheel Offset The distance from the wheel's mounting surface to its centerline. Incorrect offset may cause tire to rub.
Suspension Geometry The design and alignment settings of the suspension system. Altered suspension can change clearance.
Vehicle Load The weight the vehicle is carrying, including passengers and cargo. Increased load can reduce clearance.
Fender Modifications Alterations to the fender or wheel well area to increase space, such as rolling or pulling fenders. Modifications can increase clearance.
Winter Tires/Snow Tires

Winter tires, also known as snow tires, are designed specifically for high performance in winter weather conditions. They are made with a unique rubber compound that stays flexible in cold temperatures and features deep tread depths and patterns to provide superior traction when driving through snow, slush, or on ice. These tires are identifiable by the "mountain/snowflake" symbol on the sidewall, indicating that they meet specific snow traction performance requirements and have been designed specifically for severe snow conditions.

Z
Zero Camber

"Zero Camber" refers to the alignment where the wheels are perfectly vertical with no inward or outward tilt at the top when viewed from the front or rear. This neutral alignment aims to strike a balance between straight-line stability and cornering performance, making it a common choice for everyday driving and general-purpose vehicles. However, it may not excel in either extreme of high-speed cornering. For a broader understanding of this alignment characteristic, refer to the term under "Camber".

Zero Offset

Zero offset occurs when a wheel's mounting surface is exactly aligned with its centerline, meaning the hub connects directly in line with the wheel's center. This positioning is crucial for maintaining balanced vehicle handling, ensuring even tire wear, and safeguarding suspension components. It's particularly relevant in custom vehicle modifications; for more information, refer to the entry under "Offset".

Zero Scrub Radius

Zero Scrub Radius occurs when the steering axis intersects the ground directly at the center of the tire's contact patch, facilitating balanced steering and straight-line stability. For a comprehensive understanding of Scrub Radius and its implications, refer to the entry under "Scrub Radius."

ZR-Rated Tires

The designation "ZR" in tire sizing refers to a tire's speed rating, specifically indicating that the tire is rated for speeds in excess of 149 mph (240 km/h). ZR is found in the tire size preceding the construction type and diameter, for example, 245/40ZR18. While ZR denotes high-speed capability, it is often accompanied by a separate speed rating letter (e.g., W or Y) to specify the exact speed the tire can safely maintain.

Table: Common Speed Ratings Including ZR

Speed Rating Letter Speed (mph) Speed (km/h) Typical Vehicles
ZR Above 149 Above 240 High-performance vehicles
W Up to 168 Up to 270 High-performance vehicles
Y Up to 186 Up to 300 Exotic high-performance vehicles

Note: While ZR tires are designed for high-speed performance, it's important to note that operating a vehicle at excessive speeds can be dangerous and is often illegal. Always adhere to posted speed limits and ensure that your tires are properly maintained to ensure safe driving conditions.
